P/N: 166002A Key Specs
Item

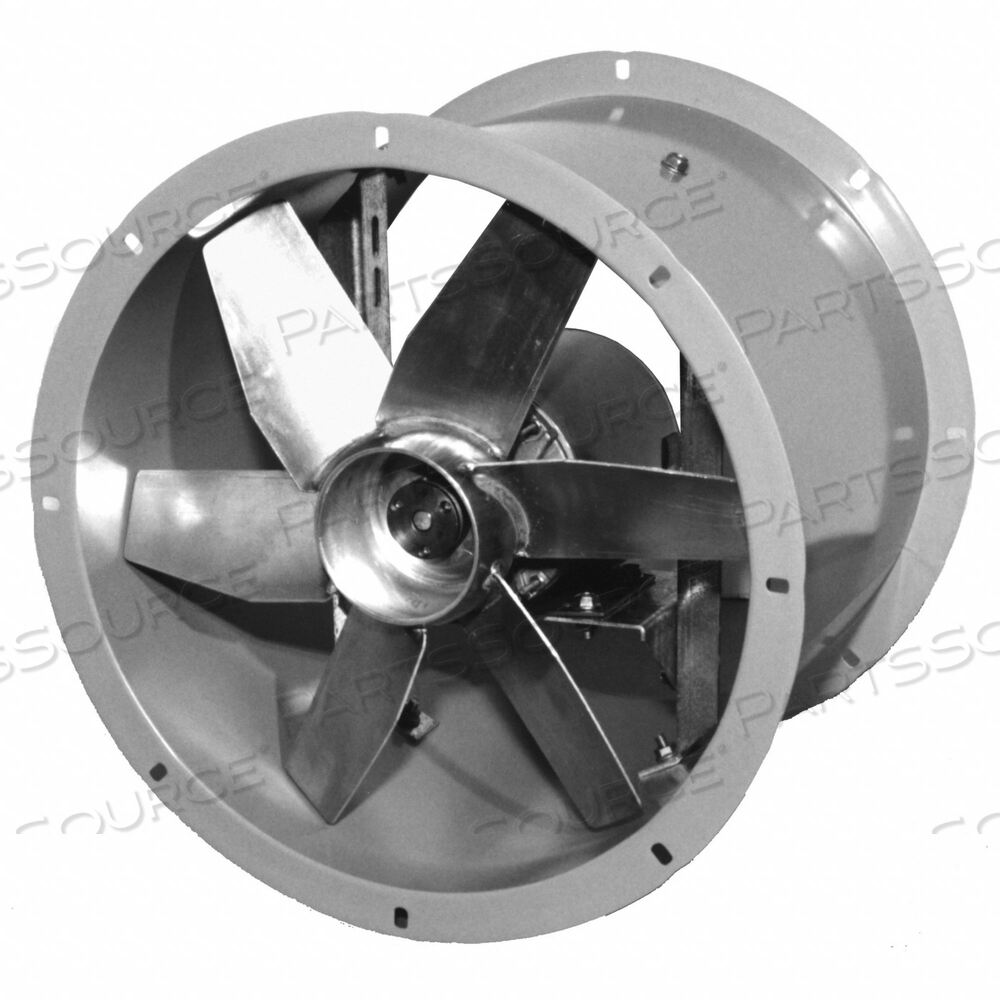

STEEL 18.5 DIA 14 L 18.5 H TUBEAXIAL FAN
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
166002A
Condition
New OEM Original
Returnable
No
Bearing Type
Ball
Blade Dia.
16 in
Blade Material
Aluminum
CFM @ 0.000-In. SP
2763/1832
CFM @ 0.125-In. SP
2595/1530
CFM @ 0.250-In. SP
2388
Companion Flange Stock No.
4C717
Dimension A
16 1/8 in
Dimension B
17 1/2 in
Dimension C
18 1/2 in
Dimension D
14 in
Drive Type
Direct
Fan RPM
1750/1160
Full Load Amps
5.5/3.6
Height
18 1/2 in
Housing Dia. w/Mtg. Flange
18 1/2 in
Housing Dia. w/o Mtg. Flange
16 1/8 in
Housing Finish
Baked Enamel
Housing Material
Steel
Hz
60
Inlet Dia.
16 1/8 in
Max. Ambient Temp.
104 Degrees F
Max. BHP
0.36/0.10
Max. Depth
14 in
Max. Inlet Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
Motor HP
1/3 hp
Motor RPM
1750/1160
Motor Type
Capacitor Start
Mounting Position
Vertical/Horizontal
Number of Blades
6
Number of Speeds
2
Outlet Dia.
16 1/8 in
Phase
1
Sones @ 0.250-In. SP @ 5 Ft.
22/14.9
Standards
UL Listed and AMCA Certified
Voltage
115
Width
18 1/2 in
