P/N: 108051.00 Key Specs
Item

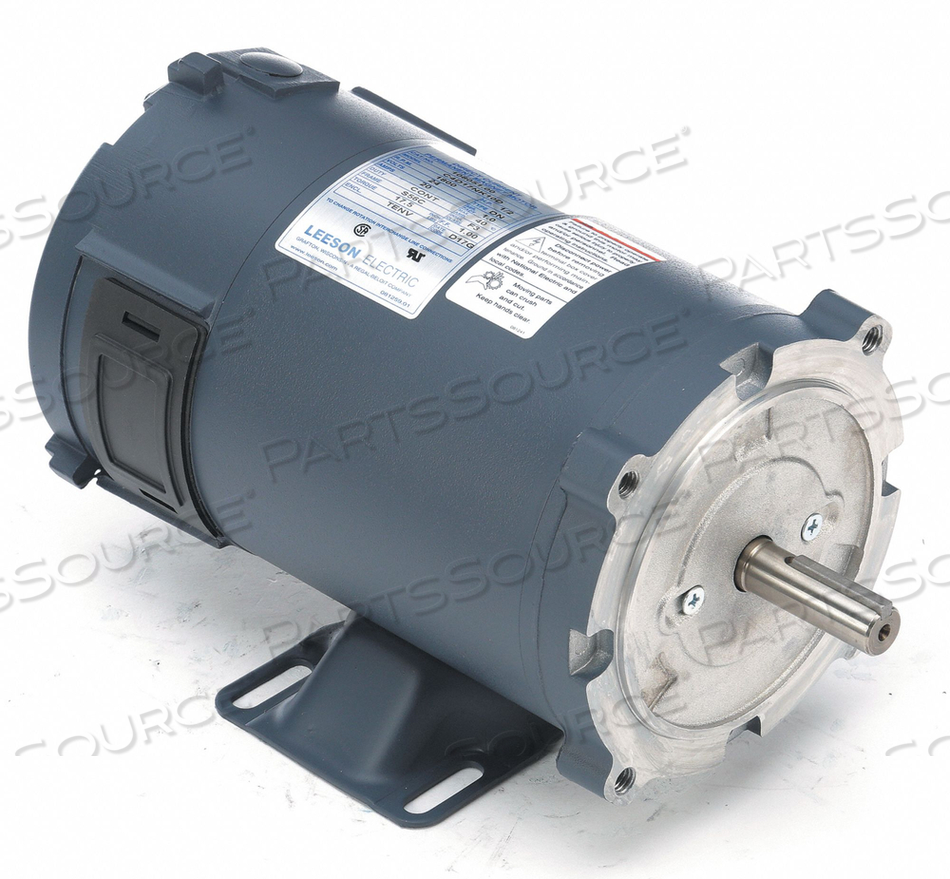

DC PERMANENT MAGNET MOTOR 20.0A 24VDC
OEM
Leeson
OEM #
108051.00
Condition
New OEM Original
Returnable
No
Bearings
Ball
Body Diameter
5-5/8 in
Brush Type
Carbon
Frame
56C
Full Load Amps
20 A
Full Load Torque
17.5 in-lb
HP
1/2
Ins. Class
F
Length Less Shaft
9-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Design
DC Permanent Magnet
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Mounting Type
Face/Base
Motor Thermal Protection
None
Nameplate RPM
1800
Overall Length
11-3/4 in
Rotation
CW/CCW
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
UL (E49747), CSA (LR2025)
Voltage
24V DC
Voltage Compatibility
24V DC
