P/N: 1.75DXPSRM02.00 Key Specs
Item

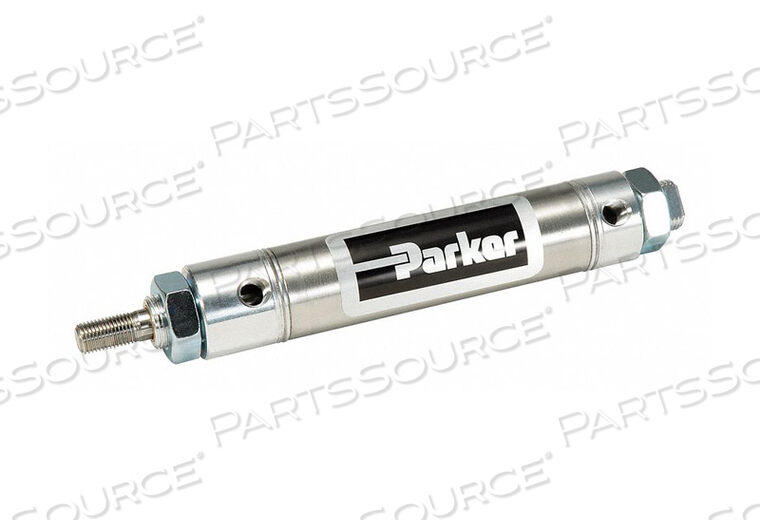

ROUND AIR CYLIN 1-3/4INBORE 2INSTROKE
OEM
Parker Hannifin Corporation
OEM #
1.75DXPSRM02.00
Condition
New OEM Original
Returnable
No
Air Cylinder Bore Dia.
1 3/4 in
Air Cylinder Mount
Nose and Pivot
Air Cylinder Product Group
Air Cylinder
Air Cylinder Type
Round Body
Body Material
Stainless Steel
Bore Dia.
1 3/4 in
Cushion Type
None
Cylinder Action
Double Acting
Cylinder Type
Round Non-Repairable
End Cap Material
Aluminum
Finish
Silver
Magnetic Piston
Yes
Max. Pressure
250 psi
Mount
Nose and Pivot
Nose Mount Thread
1-14
Overall Length
9.1 in
Piston Material
Aluminum
Piston Rod Material
Chrome Plated Steel
Pivot Hole Dia.
0.376 in
Port Size
1/4 in FNPT
Rod Dia.
0.5 in
Rod Thread Length
0.88 in
Rod Thread Size
1/2-20 UNF
Single Acting/Double Acting
Double Acting
Stroke
2 in
Temp. Range
14 Degrees to 140 Degrees F
Tube Material
Stainless Steel
