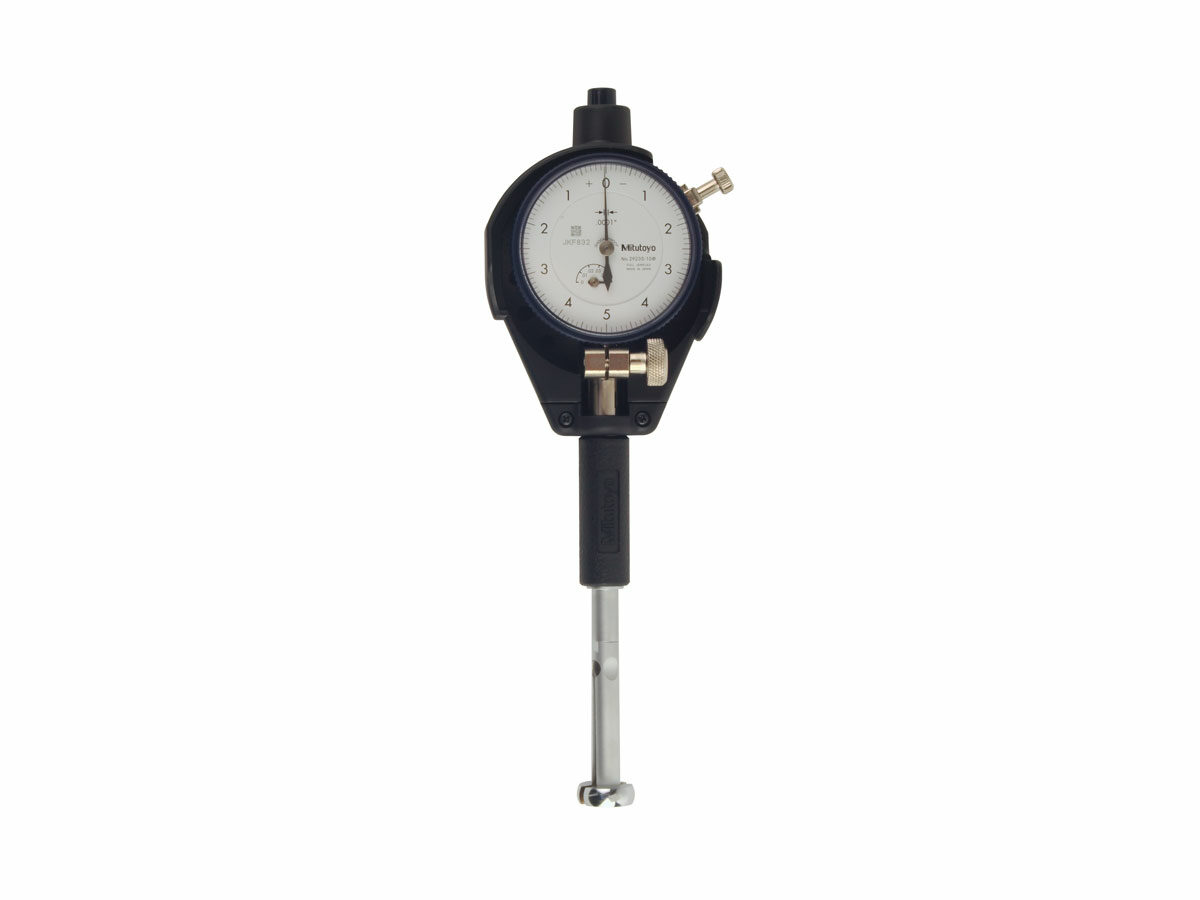

The Mitutoyo extra small hole bore gage features a split-ball design with stainless steel contact points to measure a hole»s inside diameter and identify out-of-roundness issues with an accuracy to +/-4µ/.00016”. These bore gages come in various measuring ranges and are available with or without a Mitutoyo Dial Indicator.
- Available in Metric or Inch models
- Each bore gage model comes with a set of different anvil sizes
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is .375”
- Interchangeable anvils are made of stainless steel for added accuracy and durability
- Supplied in a plastic case
| Order No.: | Product Image: | Range: | Graduation: | Number of anvils: | Number of needles: | Probe depth: | Accuracy: | Dial Gage: | |
|---|
| 526-119-20 | — | — | 0.0005″ | 6 | 1 | 2.2″ | 0.00016″ | 2922AB |
| 526-120-20 | — | — | 0.0005″ | 8 | 1 | 2.4″ | 0.00016″ | 2922AB |
| 526-122-20 | — | — | 0.0001″ | 6 | 1 | 2.2″ | 0.00016″ | 2823AB-10 |
| 526-123-20 | — | — | 0.0001″ | 8 | 1 | 2.4″ | 0.00016″ | 2823AB-10 |
| 526-156-20 | — | — | 0.0001″ | 7 | 1 | 1.26″ | 0.00024″ | 2823AB-10 |
| 526-156-21 | — | 0.146-0.287″ | 0.0001″ | 7 | 1 | 1.26″ | 0.00024″ | 2823AB-10 |
| 526-166-20 | — | 0.059-0.156″ | 0.0001″ | 9 | 2 | 0.689, 0.886″ | 0.00016″ | 2823AB-10 |
| 526-166-21 | — | 0.059-0.156″ | 0.0001″ | 9 | 2 | 0.689, 0.886″ | 0.00016″ | 2823AB-10 |
| 526-176–20 | — | — | 0.0001″ | 5 | 1 | 0.453″ | 0.00016″ | 2823AB-10 |
| 526-176-20 | — | 0.037-0.061″ | .0001″» | 5 | 1 | 0.453″ | 0.00016″ | 2823SB-10 |
| 526-176-21 | — | — | 0.0001″ | 5 | 1 | 0.453″ | 0.00016″ | 2823AB-10 |
| 526-119-20 |
| 526-120-20 |
| 526-122-20 |
| 526-123-20 |
| 526-156-20 |
| 526-156-21 |
| 526-166-20 |
| 526-166-21 |
| 526-176–20 |
| 526-176-20 |
| 526-176-21 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Inch |
|---|
| Repeatability: | 0.00004′ |
|---|
| Stem Diameter: | 3/8′ |
|---|
| With Dial Gage Protective Cover (21DZA000): | Yes |
|---|
