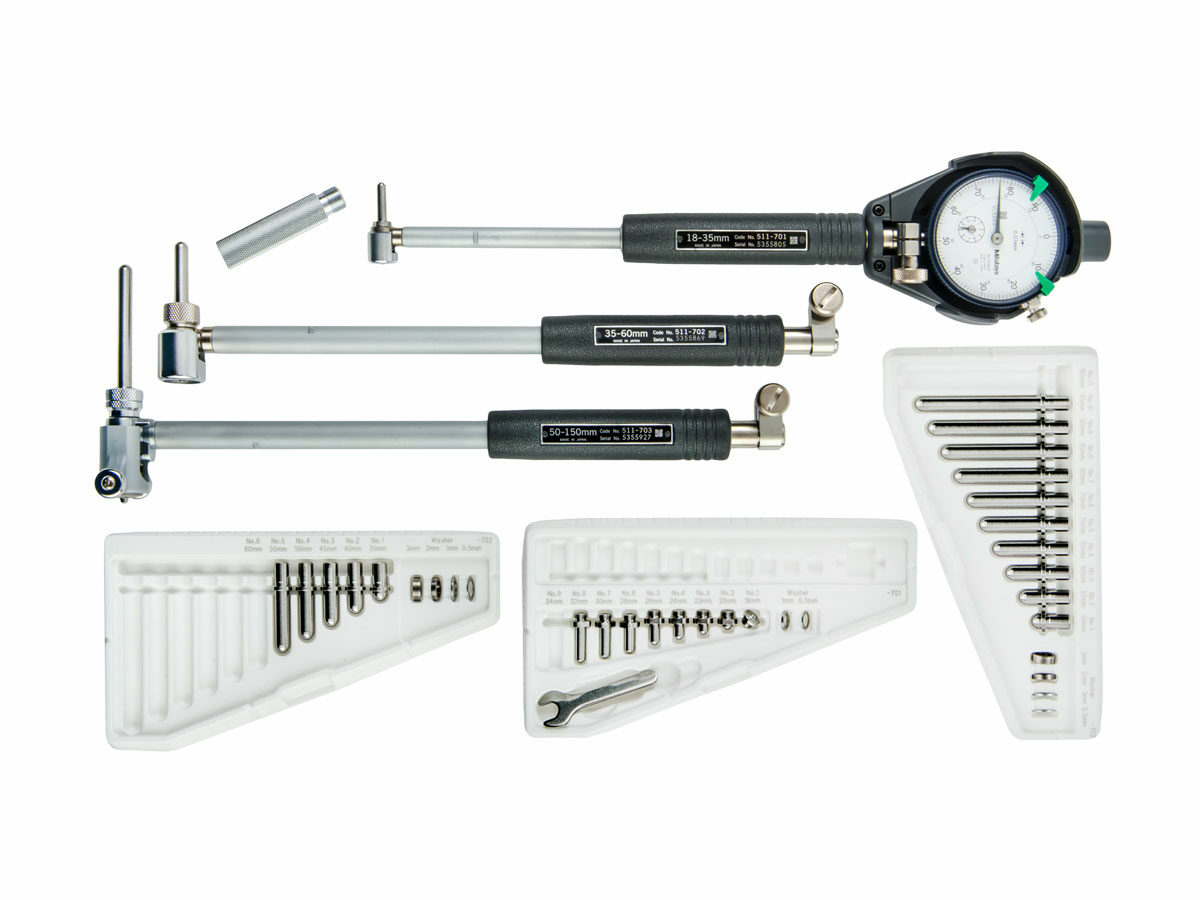

The Mitutoyo standard type bore gage set includes 26 interchangeable anvils, 10 spacers and 3 stems to measure a wide range of bore diameters with one Dial Indicator. A pendulum guide structure improves sliding the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Available in Metric or Inch sets
- Metric sets have a graduation option of 0.01mm and 0.001mm
- Inch sets have a graduation option of .0005″ and .0001″
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm / .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Graduation: | Dial Gage: | |
|---|
| 511-921-20 | — | 0.01mm | 2046AB |
| 511-922-20 | — | 0.001mm | 2109AB-10 |
| 511-931-20 | — | — | 2922A |
| 511-932-20 | — | — | 2923A-10 |
| 511-921-20 |
| 511-922-20 |
| 511-931-20 |
| 511-932-20 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Contact Point: | Carbide Tipped |
|---|
| Units: | Metric |
|---|
| Range: | 18 — 150mm |
|---|
| Accuracy: | +/-2µm |
|---|
| Repeatability: | 0.5µm |
|---|
| Adjacent Error: | 1µm |
|---|
| Stem Diameter: | 8mm |
|---|
| Number of anvils: | 26 (50mm Sub Anvil) |
|---|
| Number of spacers: | 10 |
|---|
| With Dial Gage Protective Cover (21DZA000): | Yes |
|---|
