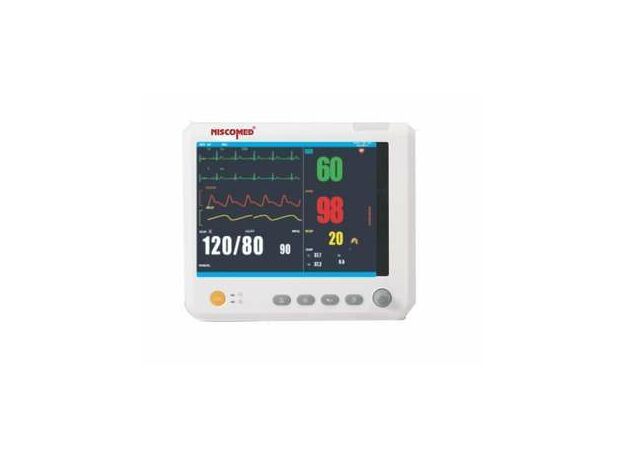

Niscomed Aqua8 Multipara Monitor Description: Light weight and portable MultiPara Monitor (8-inch TFT Display ) (5 Para) features high resolution color display and is suitable for Arrhythmia analysis and S-T segment analysis in neonatal, paediatric and adult patients. Further, this features 72 hours graphic and tabular trends of all parameters on the touch screen monitor with great level of accuracy. Parameters : ECG, SPO2, NIBP, RESP, 2-TEMP, PR Features of Niscomed multipara monitor :-
- Alarm Yes, audible and visual alarm, alarm events review
- High resolution 8” color TFT display
- Lightweight, compact and portable
- ECG, SPO2, NIBP, RESP, 2-TEMP, PR
- Built-in rechargeable lithium battery
- ECG waveforms of 7-leads display on the same screen
- 72-hours graphic and tabular trends of all parameters
- 72 alarm events of all parameters recall
- 32 seconds full-disclosure waveform review
- 500 NIBP measurement data can be stored and recall
- Data and waveforms color can be adjustable
- Arithmetic analysis and S-T segment analysis
- Suitable for adult, pediatric and neonatal patient
Detailed Parameters specifications of Niscomed multipara monitor : ECG:-
- Lead Mode: 3-Iead Or 5-lead
- Lead Selection: I, II, III, avR, avL, avF, v
- Heart rate range Adult: 15-300 bpm, pediatric
- Neonatal: 15-300 bpm
- ECG waveform: 2 channels
- Accuracy: ±1 bpm or±1 %, Whichever is greater
- S-T segment detection: Measurement range 0.2 mv~2.0 mv
SPO2:
- Measurement range: 0-100%
- Accuracy: 70-100%, ±2% 0-69%, unspecified
Pulse Rate:
- Range: 20-254 pm
- Accuracy: ±3 bpm
Respiration:
- Method RA-LL impedance
- Range Adult: 0-120 rpm,pediatric/neonatal: 0-15 rpm
- Apnea alarm yes
NIBP:
- Method Oscillometry
- Modes Manual / Auto / Continuous
- Auto Measure time Adjustable
- Measurement range: 10-270 mm Hg
Temperature:
- Range: 0-50 °C
- Accuracy: ±0.1 °C
- Channel Dual — channel
List of Supplies with Niscomed Multipara patient monitor:- 1. ECG Cable 1 no. 2. Spo2 Sensor 1 no. 3. NIBP Cuff (Adult) with Tube 1 no. 4. Temperature Sensor 1 no. 5. Power Cable 1 no. Estimated Delivery: 5-7Days Warranty :
- 1 Years
Product Specifications Color: White Parameters: ECG, RESP, SpO2, PR, NIBP and TEMP Brand/Manufacturer Brand: Niscomed Display and User Interface Screen Size :
- 8 Inch
