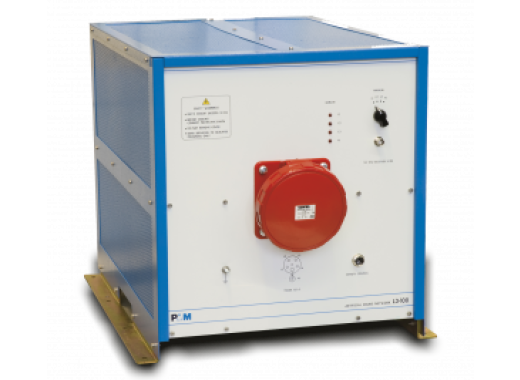

This Narda PMM LISN is intended to measure mains inference coming from the power supply of products. The L3-100 is suitable for measurements on 3-phase AC power supplied electric and electronic equipment and offers support up to 100 A. Also, it is possible to support 125 A for 5 minutes. The frequency range for the L3-100 is 9 kHz — 30MHz.
The equivalent V-network of 50 ohms || (5ohm + 50μH) conforms with all standards. Also, the L3-100 fully complies with the following requirements: CISPR 16-1-2-2, VDE 0876, FCC part 15 and MIL-STD 461F.
Specifications Frequency range9 kHz — 30 MHz Max. voltage230 V / 50-60 Hz (CAT II) Max. current100 A (125 A Impedance50 Ω ║ (5 Ω + 50 µH) Dimensions465 x 450 x 740 mm Weight70 kg
Accessories
The Narda PMM LISN L3-100 comes with the following accessoires:
- RF cable
- LISN remote control cable
- IEC mains plug
- Calibration certificate
