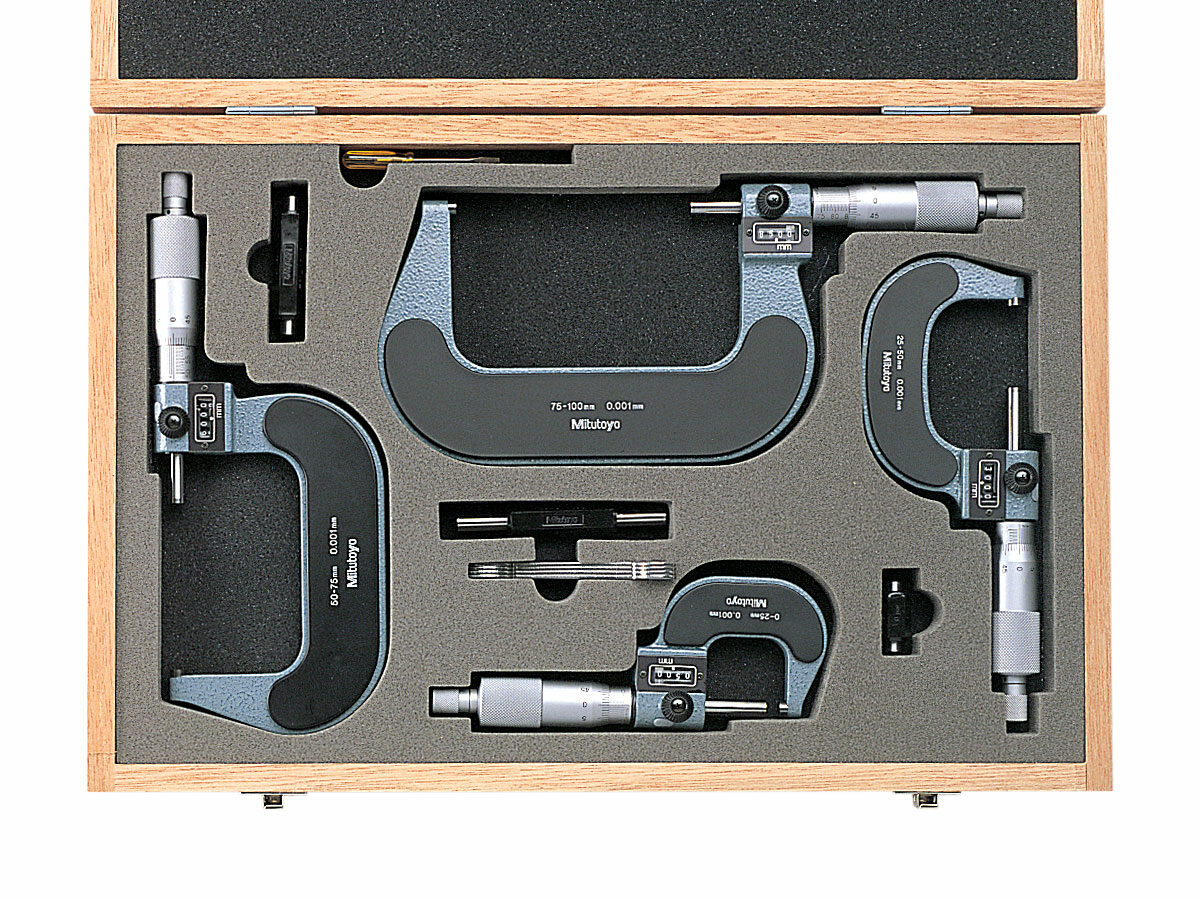

Each Mitutoyo outside micrometer in this set feature a mechanical digit counter and a ratchet-stop mechanism which provides uniform pressure on a workpiece for precise, repeatable measurements. The frames are satin chrome finished for durability, and measurements on the thimbles and conversions on the frames are laser etched for easier reading. A Vernier scale with slanted barrel markings reduce parallax errors and provides highly accurate outside diameter measurements.
- Micrometer sets are available in Metric and Inch models
- The ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements
- Mechanical digit counters offer easy measurement readings to 0.01mm
- Carbide facing on the spindles and anvils resist wear to keep surfaces flatter with longer accuracy
- Spindle locks provide secure locking of the measurement position
- Satin chrome finish on the thimbles and sleeves resists rust and reduces glare
Order No.: | Product Image: | Units: | Range: | Accuracy: | Ratchet/Thimble: | Graduation: | Flatness: | Set/s: | Remarks: | |
---|
193-901 | — | Metric | 0-75mm | ±2µm | Ratchet Stop | 0.01mm | 0.6µm | — | — |
193-902 | — | Metric | 0-100mm | ±3, 2µm | Ratchet Stop | 0.01mm | 0.6µm | — | — |
193-915 | — | Metric | 0-75mm | ±2µm | Ratchet Stop | 0.001mm | 0.6µm | — | 0.001 reading is obtained with vernier |
193-916 | — | Metric | 0-100mm | ±3, 2µm | Ratchet Stop | 0.001mm | 0.6µm | — | 0.001 reading is obtained with vernier |
193-923 |  | Inch | — | ±.00015, .0001″ | Ratchet Stop, Friction Thimble | 0.0001″ | — | — | .0001 reading is obtained with vernier |
193-901 |
193-902 |
193-915 |
193-916 |
193-923 |
Технические характеристики
Technology: | Digit counter |
---|
Measuring Faces: | Carbide tipped |
---|
