The Mitutoyo Metric Square Long Gage Block Sets are available in different grades, sizes and steps, offering exceptional precision and stable longitudinal and lateral orientation for calibrations and measurements in extended lengths. The Mitutoyo innovative lapping technique makes our gage blocks some of the most accurate and trusted instruments in the world, featuring exceptional flatness and ideal surface roughness. Our steel gage blocks are constructed of high-carbon and methodically heat treated repeatedly for a high degree of hardness to reduce deterioration over time.
- Available with steel blocks only
- Available Grades include: 00, 0, AS-1, and AS-2
- Available Steps include: 25mm, 50mm, and 100mm
- Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Inspection Certificate included

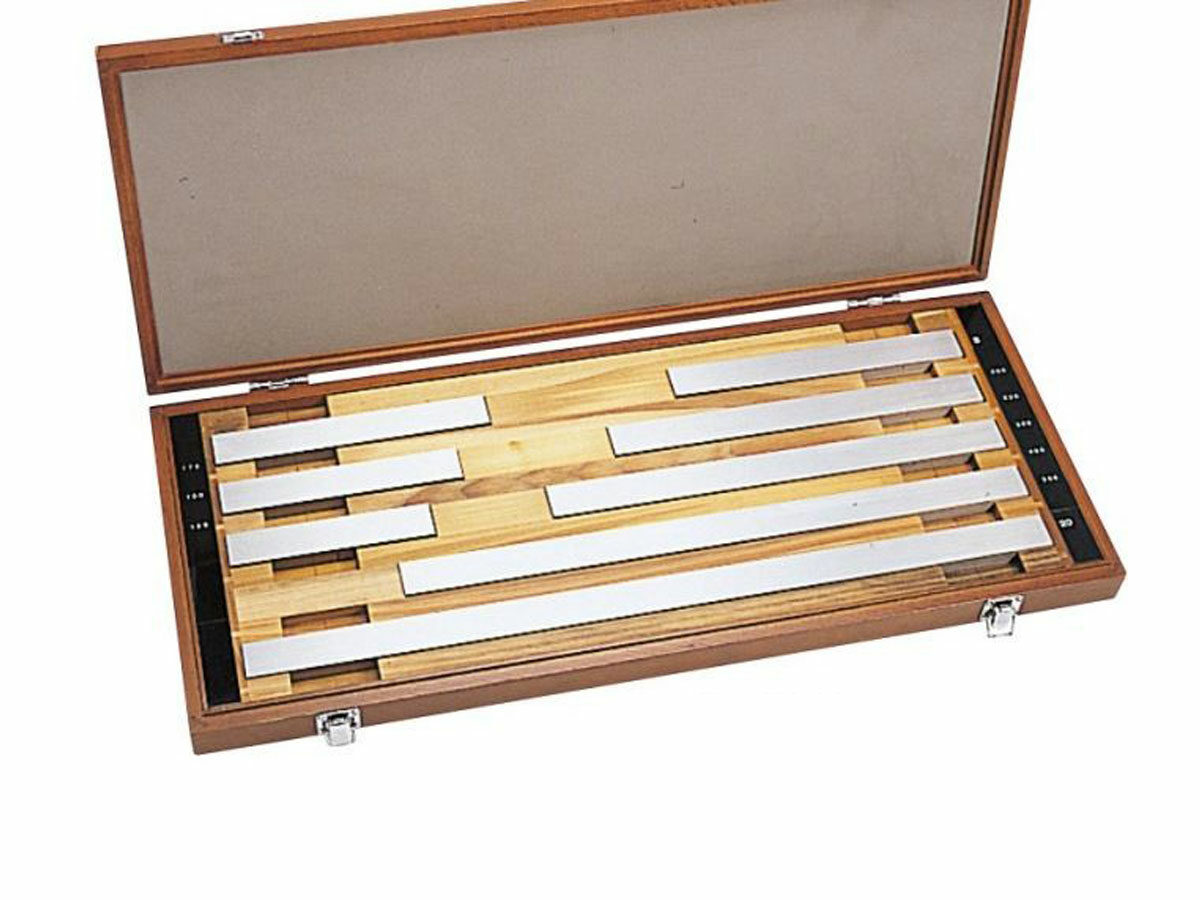

- Supplied in a solid wooden case
| Order No.: | Product Image: | Grade: | Size: | Step: | Qty: | |
|---|
| 516-751-26 | — | 00 | 125, 15, 175 | 25 | 3 |
| 516-752-26 | — | 0 | 200 — 250 | 50 | 2 |
| 516-753-26 | — | AS-1 | 300, 400, 500 | 100 | 3 |
| 516-754-26 | — | AS-2 | — | — | — |
| 516-751-26 |
| 516-752-26 |
| 516-753-26 |
| 516-754-26 |
Технические характеристики
| Units: | Metric |
|---|
| Shape: | Square |
|---|
| Number of blocks per set: | 8 |
|---|
| Provided with Inspection Certificate: | Yes |
|---|
| Material: | Steel |
|---|
| Blocks included in set: | 125, 150, 175, 200, 250, 300, 400, 500 |
|---|
