Features:
- Test speeds 100x faster than standard system power supplies
- Command processing speed <, 2ms
- Fast up/down programming speeds up to 500 µs
- Adjustable measurement rate to balance speed and accuracy
- Dual voltage and current measurement capability with DMM-like accuracy
- Power, peak power, watt hour, and amp hour measurements
- Provides continuous smooth operation between +current and — current transitions
- Provides + and — programmable current limits, programmable + and — current waveforms, and automatic downprogramming
- Full two-quadrant operation requires N7909A power dissipater units, standalone power supply offers 10% rated current two-quadrant operation
- Optional accessory N7908A black-box recorder
- Works in the background tracking power events whenever the APS supply is on
- Records measurement data, trigger events, status bits, and more
- Ensures equal current sharing among paralleled supplies
- Implemented with three wire connection on power supply rear panel
- Ensures each paralleled supply operates in its intended mode, whether that is CV or CC
Specifications:
- 2 kW
- 20 V
- 100 A

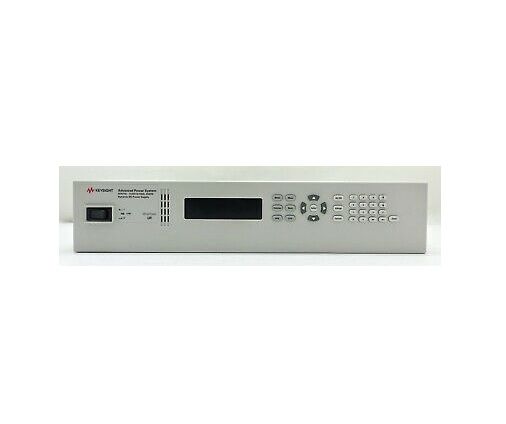

The N7971A is a 2 kW, 20 V, 100 A dc power supply from Agilent Keysight HP.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 100 A |
| Voltage | 20 V |
| Power | 2 kW |
