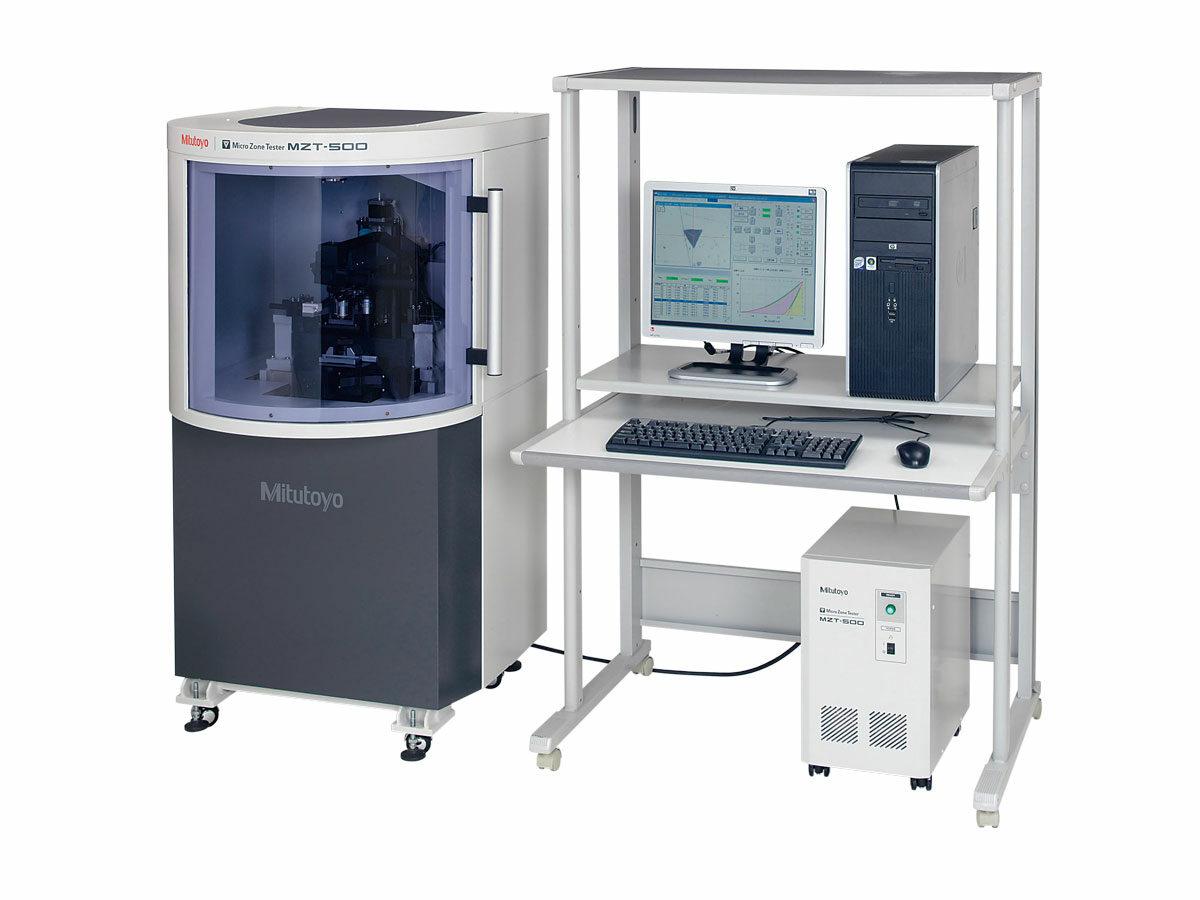

The Mitutoyo MZT-500 Series test system models are exceptionally powerful tools in the fields of research and development and quality control. The MZT-500 can evaluate mechanical properties such as various CVD and PVD-deposited or generated films which include ion-plated films, hardness of ultra-fine cross-sections, bonding mechanical properties, and mechanical wear properties of carbon fibers, glass fibers, whiskers, etc.
- Indentation factor and deformation characteristics in the load, dwell and unload phases are obtainable for use in determining properties of the specimen material
- Hardness tests such as Vickers and Knoop hardness tests are supported
- The balance lever vibration isolation mechanism reduces the effect of external vibrations on measurements
- Indenter indentation depth can be measured up to a maximum of 20μm with a resolution of 0.1nm
- Test forces between 0.1mN and 1000mN can be applied electromagnetically for evaluation of material properties in submicroscopic areas
- Field-compatible form with cover for protection against dust and wind
- The MZT-500L model features a manual XY stage
- The MZT-500P model features an automatic XY stage
| Order No.: | Product Image: | Model: | XY Stage Type: | XY Stage Travel Range: | |
|---|
| 810-813A | — | MTZ-500L | Manual | 25x25mm |
| 810-814A | — | MTZ-500P | Automatic | 50x50mm |
Технические характеристики
| Basic System: | Yes |
|---|
| Data Analysis/Control Device: | Yes |
|---|
| Test Force Loading Range: | 0.1 — 1000mN |
|---|
| Test Force Loading Control Resolution: | 0.916µN |
|---|
| Test Force Loading Speed: | 0.01 — 100mN/s |
|---|
| Indentation depth measurement Range: | 0 — 20µm |
|---|
| Indentation depth measurement Resolution: | 0.1nm |
|---|
| Indenter: | Bercovich triangular pyramid |
|---|
| Sample Surface observation method Camera type: | 1/3 inch black and white |
|---|
| Sample Surface observation method Camera resolution (pixels): | 410,000 |
|---|
| Sample Surface observation method monitor magnification: | 100x (2500x) |
|---|
| Optional Sample Surface observation method monitor magnification: | 10x (250x), 40x(1000x) |
|---|
| Dimensions Height and Depth: | 90mm |
|---|
| Test Type: | Indentation, continuous, repeated |
|---|
