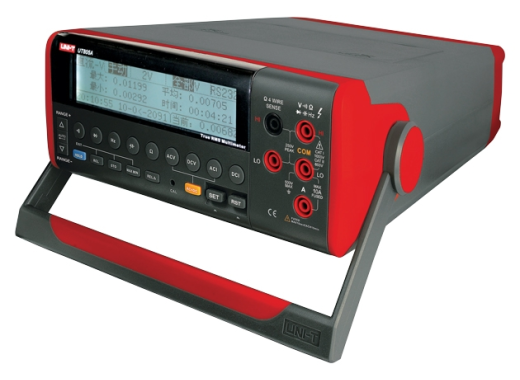

The UNI-T UT805A is a 200.000 count benchtop multimeter. The meter is suitable for the demanding user. With the 24 bits A/D converter and digital calibration, the UT805A offers high precision. The multimeter can measure DC/AC voltage, DC/AC current, resistance diodes, continuity, capacity and frequency. The UNI-T UT805A is easy to use due to the large push buttons.
The multimeter offers connectivity in the form of a RS232C and USB connector. This makes it possible to easily connect the meter with a computer and to log data. This can even be done as macro recording in which the meter automatically logs certain data to the computer. In addition, the meter has a memory function for local storage.
Specifications Precision Max. DC Voltage 1000 V ± (0.015%+ 3 ) Max. AC Voltage 750 V ± (0.2 % +100) Max. DC Current 10A ± (0.05% + 10) Max. AC Current 10A ± (0.3 % +400) Max. resistance 20 M ± (0.02% + 6 ) Max. capacitance 6 mF ± (2 % + 5 ) Frequency 1 Hz — 60 MHz ± (0.1 % + 3 ) Display 200.000 counts / 5 1/2 digit Memory 100 slots Display 256 x 64 LCD dot-matrix (with backlight) Connectivity USB, RS232 Dimensions 300 mm × 245 mm × 105 mm Weight 3.2 kg
For more information, please refer to the manual at the bottom of this page.
Accessories
The UNI-T UT805A multimeter comes with the following accessories:
- Power cord
- Manual
