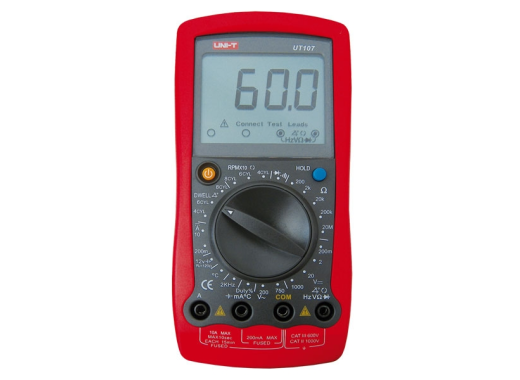

The UT107 meters of UNI-T are compact handheld multimeters with good value for money. The meter can perform most measurements, it can measure DC/AC voltages, DC current and resistance, the 107 can also measure frequency and temperature. On the 2000 counts display you can read exactly enough for all basic applications.
This meter is aimed at applications in the automotive sector, which is why the UT107 also offers the possibility to measure dwell and RPM. This allows the meter to be used to perform basic engine management.
Specifications Measurement range and accuracy Max. DC voltage1000 V ±(0.5%+2) Max. AC voltage750 V ±(0.8%+5) Max. DC current10A ±(0.8%+5) Max. resistance20 MΩ ±(0.8%+5) Frequency1 Hz — 2 kHz± (2 % +5) Temperature-40°C ~ 1000°C ±(2 % +8) Dwell4 — 8 Cyl ± (3 % +5) Tachograph4 — 8 Cyl ± (3 % +8) Display 2000 counts / 3 1/2 digit Power supply 9 Volt battery (6F22) Dimensions 179 mm × 88 mm × 39 mm Weight 351 g
For more information you can find the manual here. Accessories
The UT107 series comes with:
- Manual
- Test leads
- Contact temperature wires
- Battery
- Holder
