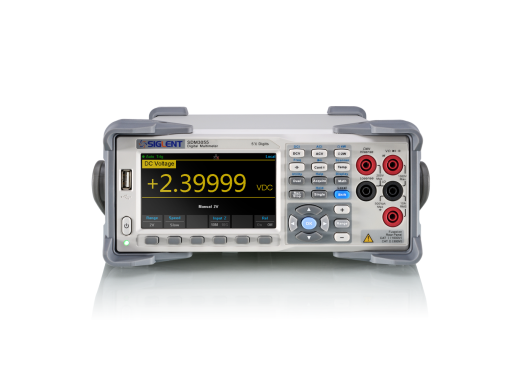

The Siglent SDM3055 is a 5.5 digit multimeter specially designed to offer high precision (0.015%) at a good price. With the 4.3′ colour TFT screen the multimeter is easy to read and with the built-in help functions it is easy to use. The built-in 1Gb storage provides enough space for all the storage that is necessary and can be accessed via USB or LAN. The SDM3055 multimeter uses multiple Math functions and image functions to simplify data analysis. An example of this is the display of histograms.
The functionality of the SDM3055 is extended by the colour screen. For example, the aforementioned histograms can be displayed on the screen, but also previous measurement results can easily be displayed in tables. Because the USB is on the front, it can easily be used.
The SDM3055 can be operated via USBTMC, but also offers the possibility to communicate with LabView of National Instruments. In addition, an SCPI programming manual is available which allows the multimeter to be controlled remotely.
Are you looking for a model with a 12-channel multiplexer? Then you might want to have a look at the SDM3055 multimeter with 12-channel multiplexer.
Models
The difference between the 3055 and the 3055A is that the latter has a GPIB connection.
SDM3055SDM3055A Connectivity USB, LAN USB, LAN, GPIB Price 469 €469.00 Excl. VAT 529 €529.00 Excl. VAT Specifications DC accuracy 0.015% Max. DC voltage measurement scale 1000 V Max. DC current measurement scale 10 A Max. AC voltage measurement scale True-RMS, 750V Max. AC current measurement scale True-RMS, 10 A Max. resistance 100 M Max. capacitance 10000F Display 4.3′ TFT LCD (480 x 272) Memory 1 GB Sand Flash Dimensions 282 mm x 260 mm x 105 mm Weight 3.33 kg Options By means of the following options you can add additional features.
USB to GPIB With this option, you can control the function generator through GPIB. Siglent USB-GPIB adapter 123 €123.00 Excl. VAT Info Add to Cart Current shunt With this option, you can expand the measurement current range of the multimeter. Siglent SCD30A current shunt 81.82 €81.82 Excl. VAT Info Add to Cart Accessories
Multimeters of the SDM3055 series are supplied with:
- Power cord
- Two measuring cables and two crocodile clamps
- USB cable
- Quick start guide
- Warranty certificate
