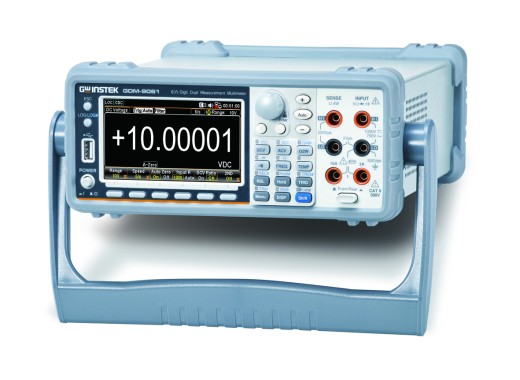

The GW Instek GDM-9061 is a 6 1/2 digit digital multimeter with extensive functionality. The meter offers a high precision DC voltage measurement and features a total of 11 other accurate measurement functions. Furthermore, this meter also has a large number of Math- and statistical functions to simplify the analysis of data. In addition to the standard numerical display mode, this meter also offers a wide range of graphical functions such as a barmeter, trend graph and histogram. As a result, the measurement results are no longer just displayed as a series of numbers but as clear graphic plots. (See 4th picture)
A very unique feature of the GW Instek digital multimeters is the ability to simultaneously perform two different measurement functions. The functions are executed parallel to each other and the measurement results are displayed separately as numerical values or graphs. (See 5th picture)
The GDM-9061 is equipped with USB, RS232 and LAN as standard interfaces. It is also possible to connect a GPIB interface. Via these interfaces and the PC software, it is possible to manage the meter’s settings via a PC. In addition, it is also possible to observe and store the measured data on the PC.
Specifications Measurements ModeRangeBasic precisionMinimum Resolution Max. DC Voltage1000 V ±(0.0035 + 0.0005)0.1 μV Max. DC Current10 A±(0.05 + 0.005)100 pA Max. AC Voltage750 V ±(0.06 + 0.04)0.1 μV Max. AC Current10 A±(0.30 + 0.04)100 pA Max. resistance100 M±(0.010 + 0.001)100 μ Max. capacitance100 μF±(2 + 0.40)0.001 nF Frequency3 Hz — 1 MHz±(0.1) Temperature-200 °C ~ +1820 °C±(0.06 °C (typical))0.001 °C Sampling rate 10k/sec Memory 100k Measurement functions DCV, ACV, DCI, ACI, 2-/4-wire resistance, frequency, period, diode, continuity, temperature, capacity Math functions dB, dBm, Compare, MX+B, Percent, 1/X Display 6 1/2 Digit Display — 1,200,000 counts
4.3′ Color TFT (480 x 272) Connectivity RS232C,USB Host/Device,Lan,Digital I/O Dimensions 267(W) x 107(H) x 302(D) mm Weight 3.5 kg
The GDM-9060 is the smaller brother of the GDM-9061. The GDM-9061 has a more precise basic accuracy, greater sampling rate and larger internal memory. The GDM-9061 can also measure up to 10A where the GDM-9060 can only measure up to 3A. The GDM-9060 is a lot cheaper.
The GDM-9060 can be found here.
Accessories The GDM-9061 will be delivered with:
- Safety instructions
- Power cord
- USB cable
- Test probe (GTL-207A)
- CD (user manual, upgrade program and PC software)
