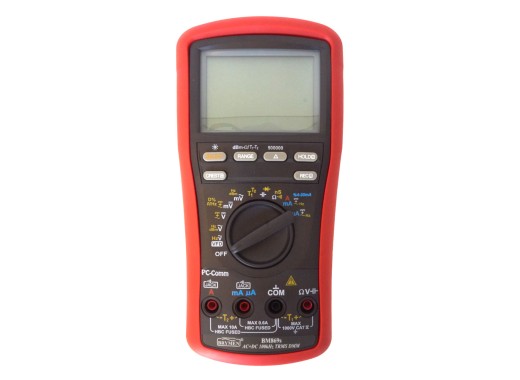

Мультиметр Brymen BM867s

The Brymen BM867s is a multimeter with good specifications that can compete with more expensive meters in terms of display, possibilities and precision. The meter can measure with a precision up to 1.5 V DC.

On the 500.000 count display, which is updated 5 times every second, various measurements can be read very precisely. AC/DC voltages, currents and a number of other measurements such as resistors, conduction, capacitance, frequency, duty-cycle and more.

The BM867s is fused for use up to 1000 V, and can also measure up to this value. With the 500.000 count display, the meter can even measure 2 decimals on the 1000 V accuracy. Furthermore, the meter offers various data analysis tools such as Crest, MIN-MAX, Hold and Average. With Crest it is possible to automatically measure and display the min-max in a very short period of time.

Some special measuring properties of the multimeter are, for example, the lightning-fast capacity measurement, where up to 25 mF can be measured in a few seconds. In addition, the meter has standard support for the analog 4-20 mA measurement result which is used in some systems.

This multimeter can use a PC USB connection kit! Click here! Specifications Digits / Counts 4 45 Digits / 50,000 Counts

5 45 Digits / 500,000 Counts (low speed) Measuring range and precision DC Voltage0.01 mV — 1000 V (&plusmn,0.03%+2) AC Voltage0.01 mV — 1000 V (&plusmn,2%+60) (up to 5 kHz) DC Current0.01 A — 10 A (&plusmn,0.5%+20) AC Current0.01 A — 10 A (&plusmn,1%+40) (up to 1 kHz) Max. resistance50 M (&plusmn,0.1%+6) Max. capacitance25 mF (&plusmn,1.5%+3) Frequency0.001 Hz ~ 1 MHz (&plusmn,0.002%+4) For current measurements, up to 20 A can be measured for less than 30 seconds. After that, the meter must cool down for 5 minutes. Other measurements Duty Cycle, Diode tester, Conductivity, Continuity, dBm Overload protection 1000 Volt Automatic standby Yes Dimensions 208 x 103 x 64.5 mm Weight 635 g Accessories

The Brymen BM867s comes with:

• 2x Measure leads
• User’s Manual (English)
• Batteries

Options

There are some optional accessories available for the BM867s multimeter. An overview is given in the table below. Clicking on the options will take you to the page where you can add these options to your cart.

AccessoriesPrice 2x crocodile clips incl. VAT Bag incl. VAT 2x silicone test leads incl. VAT
