Features:
- Measurements performed as defined in the Bluetooth RF test specification
- Compliant with Bluetooth Core Specifications v5.1
- Qualified by Bluetooth SIG for RF measurements
- Supports 9 Basic Rate and 8 EDR test cases
- Supports 24 Bluetooth low energy test cases
- Single script runs Basic Rate, EDR and Bluetooth low energy tests
- Audio testing capability. Three SCO channels with µ-Law, A-Law and CVSD air interface
- BlueSuite Pro3 software provides graphical traces of modulation, power ramp, individual channel measurements, and receiver sensitivity search
- Adaptive Frequency Hopping (AFH) test function for Bluetooth devices

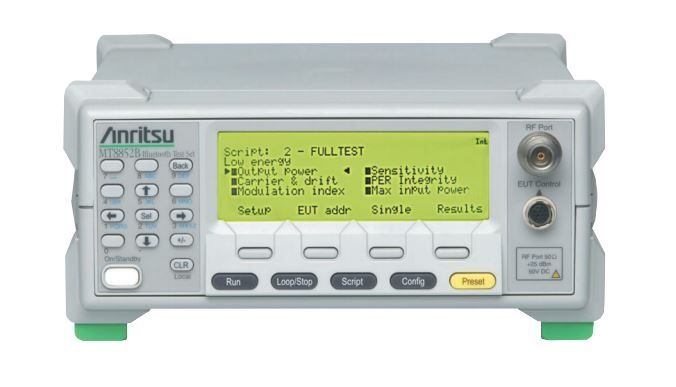

The Bluetooth Test Set MT8852B is the market leading RF measuring instrument for design proving and production test of a wide range of products that integrate Bluetooth® technology. It supports Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth low energy (BLE) measurement of transmit power, frequency, modulation, and receiver sensitivity required by Bluetooth RF test specification.
In production, a single key press initiates a measurement script that tests a device in less than 10 seconds.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
