| Windows trigger, Nth edge trigger, HDTV trigger, Delay trigger, TimeOut trigger, Duration trigger, USB trigger |
| AT-DS2, CAN-DS2000A, MEM-DS2, SD-DS2 |
| CAN Analysis Kit (Trigger + Decoding) |
| Analog channel: 56 Mpts (single-channel)/28 Mpts (dual-channel) Digital channel: 28 Mpts (8-channel)/14 Mpts (16-channel) |
| RS232, I2C, SPI Decoding Kit |
Features:
- 2 analog channels, 16 digital channels
- Bandwidth up to 300 MHz, standard with 50 Ω input
- Lower noise loor, wider vertical range: 500 uV/div~10 V/div
- Real-time Sample Rate: analog channel up to 2 GSa/s, digital channel up to 1 GSa/s
- Memory Depth: analog channel up to 14 Mpts (standard) 56 Mpts (optional), digital channel up to 14 Mpts (standard) 28 Mpts (optional)
- Innovative ‘UltraVision’ technology
- Waveform capture rate up to 50,000 wfms/s
- Up to 256 levels intensity grading waveform display
- Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)
- A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
- Complete connectivity: USB Host & Device, LAN (LXI), AUX, USB-GPIB (optional)
- 8 inch TFT (800×480) WVGA
- Three-year warranty, excluding probes and accessories
Accessories:
- Power Cord conforming to the standard of the country
- USB Data Cable CB-USBA-USBB-FF-150
- 2 Passive Probes (350 MHz) PVP2350
- 1 set LA Probe — RPL2316
- Quick Guide (Hard Copy)

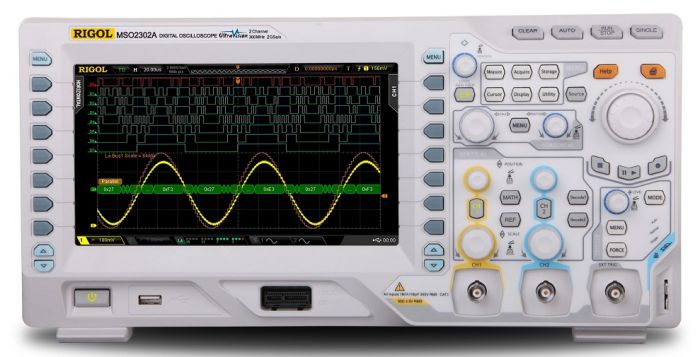

The MSO2302A mixed signal oscilloscope has 2+16 channels, target for the embedded design and test market with its industry leading speciications, powerful trigger functions and broad analysis capabilities.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Channels | 2+16 |
| Frequency | 300 MHz |
| Record Length | 14 MPts |
| Sampling Rate | 2 GS/s |
