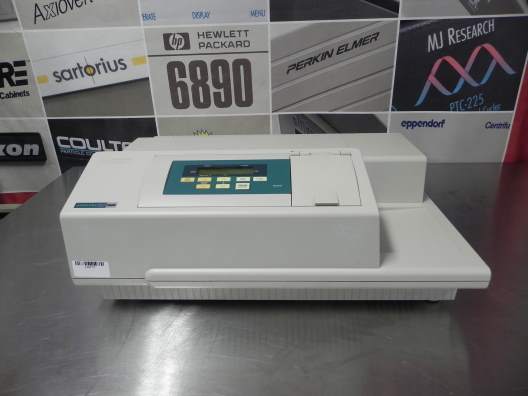

Molecular Devices Spectramax Plus Microplate UV/VIS Reader

Description

Includes:

• Computer Loaded with SoftMax Pro 5.4.1
• All Necessary Cables and Cords
• Manuals

General Specifications

• Dimensions (in.): 8.6 (h) x 22.8 (w) x 15 (d)

Performance Specifications

• Wavelength Range: 190 – 1000 nm
• Wavelength Selection: Monochromator, tunable 1.0 nm increments
• Wavelength Bandwidth: 2 nm
• Wavelength Accuracy: &lt, ± 1.0 nm
• Wavelength Repeatability: ± 0.2 nm
• Photometric Range: 0.0 to 4.0 OD
• Photometric Resolution: 0.001 OD
• Photometric Accuracy (Microplate): &lt, ± 0.006 OD ± 1.0%, 0.0 – 2.0 OD
• Photometric Accuracy (Cuvette): &lt, ± 0.005 OD ± 1.0%, 0.0 – 2.0 OD
• Photometric Precision: &lt, ± 0.003 OD ± 1.0%, 0.0 – 2.0 OD
• Photometric Baseline Flatness: &lt, 0.001 OD
• Stray Light: &lt, 0.05% @ 230 nm
• Light Source: Xenon flash lamp
• Temperature Range: Ambient + 4 °C up to 45 °C
• Temperature Uniformity (Microplate): ± 0.5 °C @ 37 °C

Microplate Read Time:

• Normal Mode:
• 96 wells. . . . 9 seconds
• 384 wells. . . . 29 seconds
• Speed Read Mode:
• 96 wells. . . . 5 seconds
• 384 wells. . . .16 seconds
