| Sensor |
|---|
| AMS Dragster DR-2k-7 CMOS |
| Resolution |
|---|
| 2048 x 1 px |
| Line Rate |
|---|
| 60 kHz |
| Model SKUs | Chroma | Lens Mount | GigE Vision Connector | Included Accessory |

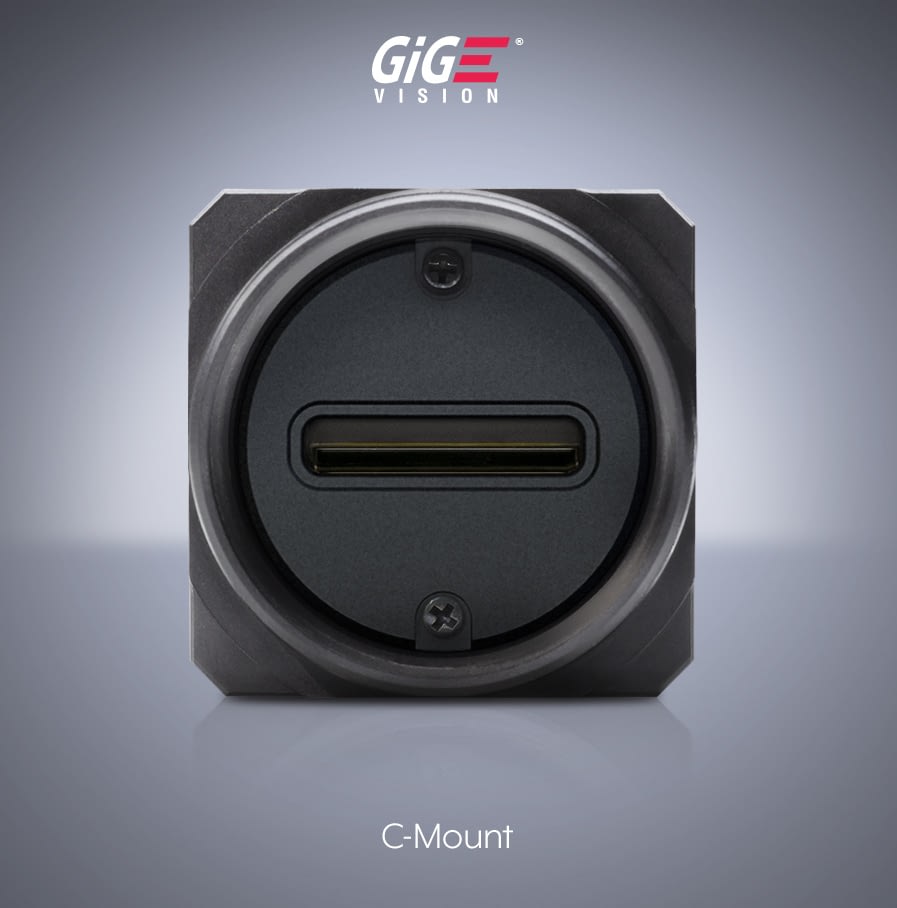

| TRI02KA-MC | Mono | C-mount | M12 | M8 GPIO IP67 Cap |
Технические характеристики
[wpie_function custom_function=»cleanerall» data=»| Sensor Properties | |
|---|---|
| Sensor Model | AMS Dragster DR-2k-7 CMOS |
| Shutter Type | Global |
| Sensor Size | 14.3 mm |
| Resolution | 2048 x 1 px |
| Pixel Size | 7.0 µm (H) x 7.0 µm (V) |
| Line Rate | 60 kHz |
| Physical Properties | |
|---|---|
| Dimensions | 29 x 29 x 45 mm |
| Lens Mount | C-Mount |
| Weight | 67 g |
| Ingress Protection | IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables) |
| Interface and Power Information | |
|---|---|
| Digital Interface | 1000BASE-T GigE M12, PoE |
| GPIO Interface | 8 pin M8 connector |
| Opto-Isolated I/O Ports | 1 input, 1 output |
| Non-Isolated I/O Ports | 2 bi-directional |
| Power Requirement | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Consumption | 3.25W via PoE, 2.6W when powered externally |
| Imaging Properties | |
|---|---|
| Image Buffer | 380 MB |
| Image Processing | Gain, gamma, black level, LUT |
| Pixel Formats | Mono8/16, Mono12p, Mono12Packed |
| Image Modes | Horizontal and vertical binning, ROI |
| ADC | 10 / 12 bit |
| Gain Range | 0 dB to 24dB analog and digital |
| Conversion Gain | Normal and High Mode (High: 4x in analog domain) |
| Exposure Time | 2 μs to 9.9ms |
| Camera Features | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Offset X, width/height, pixel format, exposure time, gain, black level |
| Counter Timer | 2 counters and 2 timers |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| Standards and Certifications | |
|---|---|
| Standard | GigE Vision v2.0 |
| Compliance | CE, FCC, RoHS, REACH, WEEE |
| Storage Temperature | -30 to 60°C |
| Operating Temperature | 0 to 55°C ambient |
| Humidity | Operating: 20% ~ 80%, relative, non-condensing Storage: 20% ~ 95%, relative, non-condensing |
| Shock and Vibration | DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6 |
| Industrial EMC Immunity | DIN EN 61000-6-2 |
| Warranty | 3 year |
| Mono EVMA 1288 Results | |
|---|---|
| Dynamic Range | 66.53dB |
| SNR (Max) | 43.91 dB |
| Saturation Capacity | 24585 e- |
| Absolute Sensitivity Threshold (Measured at 527.5nm) | 21.24 γ |
| Temporal Dark Noise | 10.96 e- |
| Gain | 0.167 DN / e- |
| Lens Manufacturer Part # | Lens Description | 0.4MP TRI004S | 1.6MP TRI016S | 2.3MP TRI023S | 2.8MP TRI028S | 3.2MP TRI032S | 5.0MP TRI050S | 5.0MP TRI051S | 5.0MP TRI050S-PQ | 5.4MP TRI054S | 6.3MP TRI064S | 7.1MP TRI071S | 8.1MP TRI081S | 8.9MP TRI089S | 12.2MP TRI122S | 12.3MP TRI120S | 12.3MP TRI124S | 16.2MP TRI162S | 20.0MP TRI200S | 20.4MP TRI204S | 24.5MP TRI245S | 2K TRI02KA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Edmund Optics UC #33-300 | C-Mt 1/2″ 4mm f/1.8 | Good | Good | Good | ||||||||||||||||||
| Edmund Optics UC #33-301 | C-Mt 1/2″ 6mm f/1.85 | Good | Good | Good | ||||||||||||||||||
| Edmund Optics UC #33-307 | C-Mt 1/2″ 8mm f/1.8 | Good | Good | Good | ||||||||||||||||||
| Edmund Optics UC #33-303 | C-Mt 1/1.8″ 12mm f/1.8 | Good | Good | Good | Vignette | Vignette | Vignette | Vignette | ||||||||||||||
| Edmund Optics UC #33-304 | C-Mt 1/1.8″ 16mm f/1.8 | Good | Good | Good | Vignette | Vignette | Vignette | Vignette | ||||||||||||||
| Edmund Optics UC #33-305 | C-Mt 1/1.8″ 25mm f/1.85 | Good | Good | Good | Vignette | Vignette | Vignette | Vignette | ||||||||||||||
| Edmund Optics C #67-709 | C-Mt 1/1.8′ 6mm, f1.4 | Good | Good | Good | Vignette | Vignette | Vignette | Vignette | ||||||||||||||
| Edmund Optics C #58-000 | C-Mt 2/3′ 8.5mm, f/1.3 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Edmund Optics C #58-001 | C-Mt 2/3′ 12mm, f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Edmund Optics C #59-870 | C-Mt 2/3′ 16mm, f/1.6 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Edmund Optics C #59-871 | C-Mt 2/3′ 25mm, f/1.4 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Edmund Optics C #59-872 | C-Mt 2/3′ 35mm, f/1.65 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Edmund Optics C #59-873 | C-Mt 2/3′ 50mm, f/2 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Universe Compact C #BL060C | C-Mt 5MP 2/3″ 6mm f/2.0 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Universe Compact C #BL080C | C-Mt 5MP 2/3″ 8mm f/2.0 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Universe Compact C #BL120C | C-Mt 5MP 2/3″ 12mm f/2.0 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Universe Compact C #BL160C | C-Mt 5MP 2/3″ 16mm f/2.0 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Universe Compact C #BL250C | C-Mt 5MP 2/3″ 25mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon HF-XA-5M #HF6XA-5M | C-Mt 5MP 2/3″ 6mm f/1.9 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon HF-XA-5M #HF8XA-5M | C-Mt 5MP 2/3″ 8mm f/1.6 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon HF-XA-5M #HF12XA-5M | C-Mt 5MP 2/3″ 12mm f/1.6 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon HF-XA-5M #HF16XA-5M | C-Mt 5MP 2/3″ 16mm f/1.6 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon HF-XA-5M #HF25XA-5M | C-Mt 5MP 2/3″ 25mm f/1.6 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||||||||
| Fujinon CF-ZA-1S#CF8ZA-1S | C-Mt 23MP 1.2″ 8mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Vignette | Good |
| Fujinon CF-ZA-1S #CF12ZA-1S | C-Mt 23MP 1.2″ 12mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Fujinon CF-ZA-1S #CF162ZA-1S | C-Mt 23MP 1.2″ 16mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Fujinon CF-ZA-1S #CF252ZA-1S | C-Mt 23MP 4/3″ 25mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Fujinon CF-ZA-1S #CF352ZA-1S | C-Mt 23MP 4/3″ 35mm f/1.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Fujinon CF-ZA-1S #CF502ZA-1S | C-Mt 23MP 4/3″ 50mm f/2.4 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Computar MPY #V0828-MPY2 | C-Mt 12MP 1.1″ 8mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||
| Computar MPY #V1228-MPY2 | C-Mt 12MP 1.1″ 12mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||
| Computar MPY #V1628-MPY2 | C-Mt 12MP 1.1″ 16mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||
| Computar MPY #V2528-MPY | C-Mt 12MP 1.1″ 25mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||
| Computar MPY #V3528-MPY | C-Mt 12MP 1.1″ 35mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | |||
| Computar MPT #F1228-MPT | C-Mt 45MP 4/3″ 12mm f/2.8 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Computar MPT #F2524-MPT | C-Mt 45MP 4/3″ 25mm f/2.4 | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good | Good |
| Edmund Optics CA #11-320 | TFL-Mt APS-C 50mm f/1.8 | <"] |
