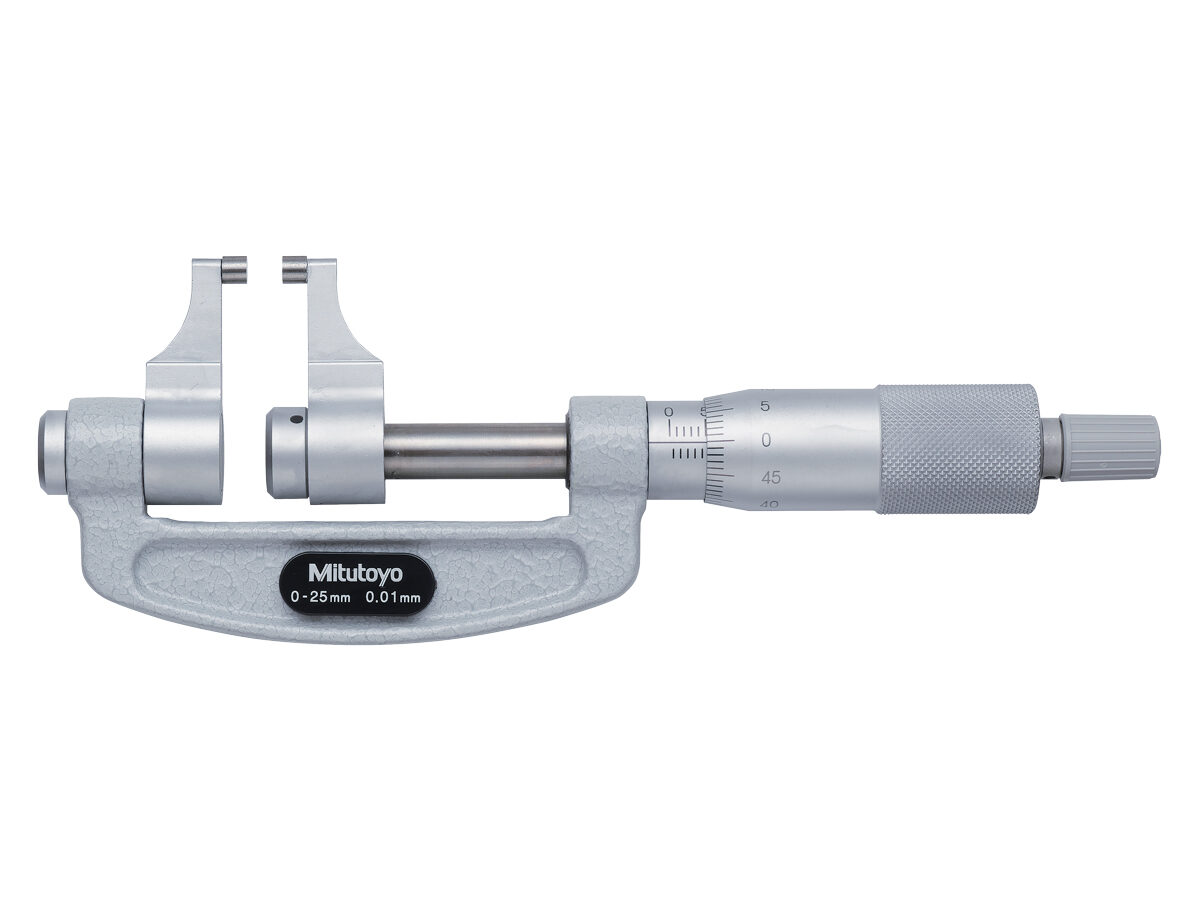

The Mitutoyo caliper type micrometer features jaws constructed of hardened steel with carbide measuring surfaces and a hardened steel spindle to take precise measurements on recessed features. The micrometer»s ratchet stop mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring extensive dimensions for easy one-handed measurements.
- Available in Metric or Inch models
- Ratchet stop mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- Carbide-tipped measuring tips resist wear for better accuracy over time
- Frame has a baked enamel finish for more durability
- Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
- Includes a standard bar except for 0-25mm / 0-1” models
- Supplied in a plastic, fitted case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Flatness: | Parallelism: | |
|---|
| 143-101 | — | Metric | 0-25mm | ±5µm | 210g | 0.01mm | 0.3µm | 3µm or less |
| 143-102 | — | Metric | 25-50mm | ±6µm | 230g | 0.01mm | 0.3µm | 3µm or less |
| 143-103 | — | Metric | 50-75mm | ±7µm | 280g | 0.01mm | 0.3µm | 4µm or less |
| 143-104 | — | Metric | 75-100mm | ±8µm | 330g | 0.01mm | 0.3µm | 4µm or less |
| 143-121 | — | Inch | 0-1″ | ±0.00025″ | 210g | 0.001″ | — | 0.000012″ or less |
| 143-122 | — | Inch | 1-2″ | ±0.00030″ | 230g | 0.001″ | — | 0.000012″ or less |
| 143-123 | — | Inch | 2-3″ | ±0.00035″ | 280g | 0.001″ | — | 0.000012″ or less |
| 143-101 |
| 143-102 |
| 143-103 |
| 143-104 |
| 143-121 |
| 143-122 |
| 143-123 |
Технические характеристики
| Technology: | Mechanical |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
| Measuring Faces: | Carbide tipped |
|---|
