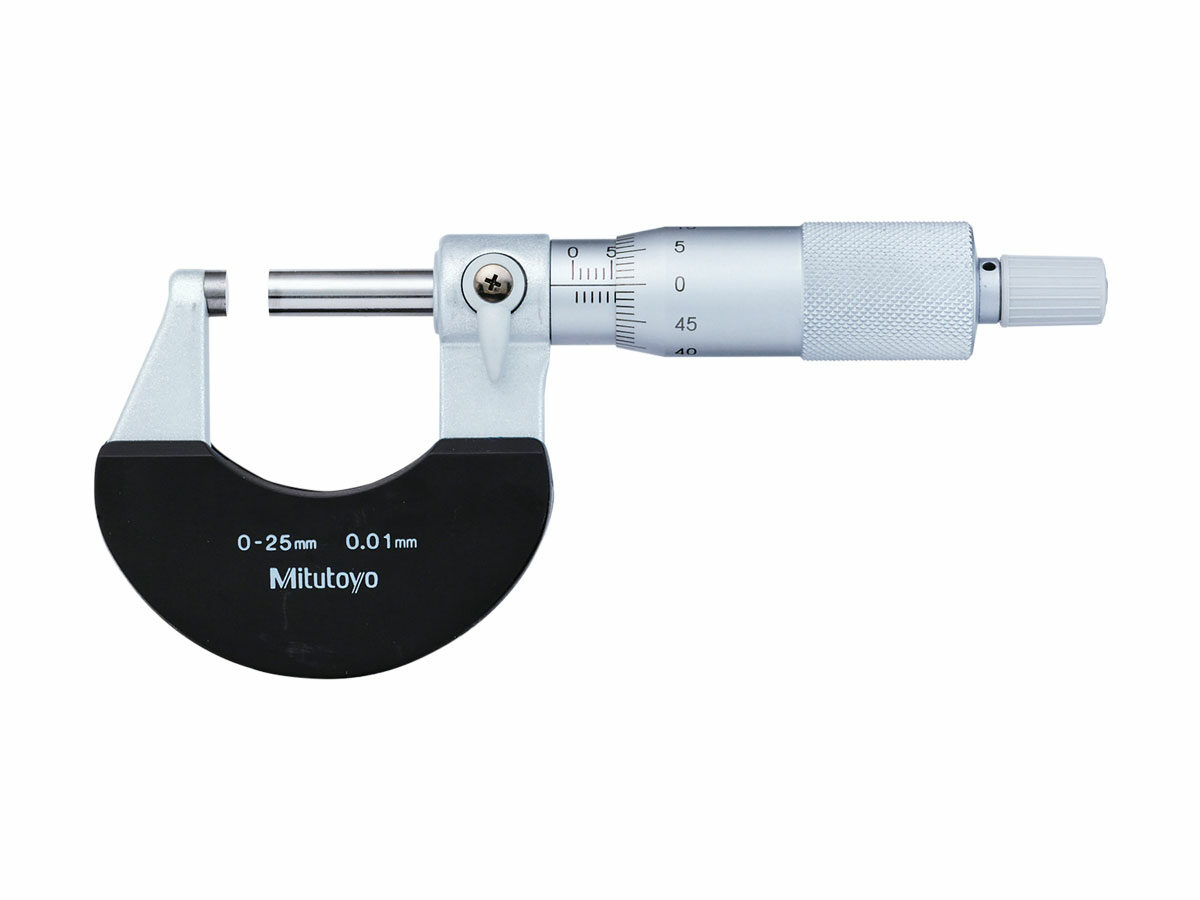

The Mitutoyo ratchet stop outside micrometer is ideal for measuring metal and non-metal workpieces in tight spaces and narrow slots attributed to the taper of its frame on the anvil side. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Scale is laser etched on thimble and sleeve for fast and easy measurement readings
- Heat-insulated frame minimalizes thermal expansion for consistent measurements in different environments
- Carbide measuring faces on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Speeder is always available for quick rotation of the spindle
- Includes a standard bar except for 0-25mm models
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Accuracy: | Mass: | Parallelism: | Set/s: | |
|---|
| 102-301 | — | 0-25mm | ±2µm | 180g | 2µm or less | — |
| 102-302 | — | 25-50mm | ±2µm | 270g | 2µm or less | — |
| 102-303 | — | 50-75mm | ±2µm | 375g | 2µm or less | — |
| 102-304 | ![]() | 75-100mm | ±3µm | 490g | 3µm or less | — |
| 102-911-40 | — | 0-100mm | ±3, 2µm | — | 2, 3µm or less | — |
| 102-301 |
| 102-302 |
| 102-303 |
| 102-304 |
| 102-911-40 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
| Graduation: | 0.01mm |
|---|
| Measuring Force: | 5-10N |
|---|
| Measuring Faces: | Carbide tipped |
|---|
| Flatness: | 0.6µm |
|---|
