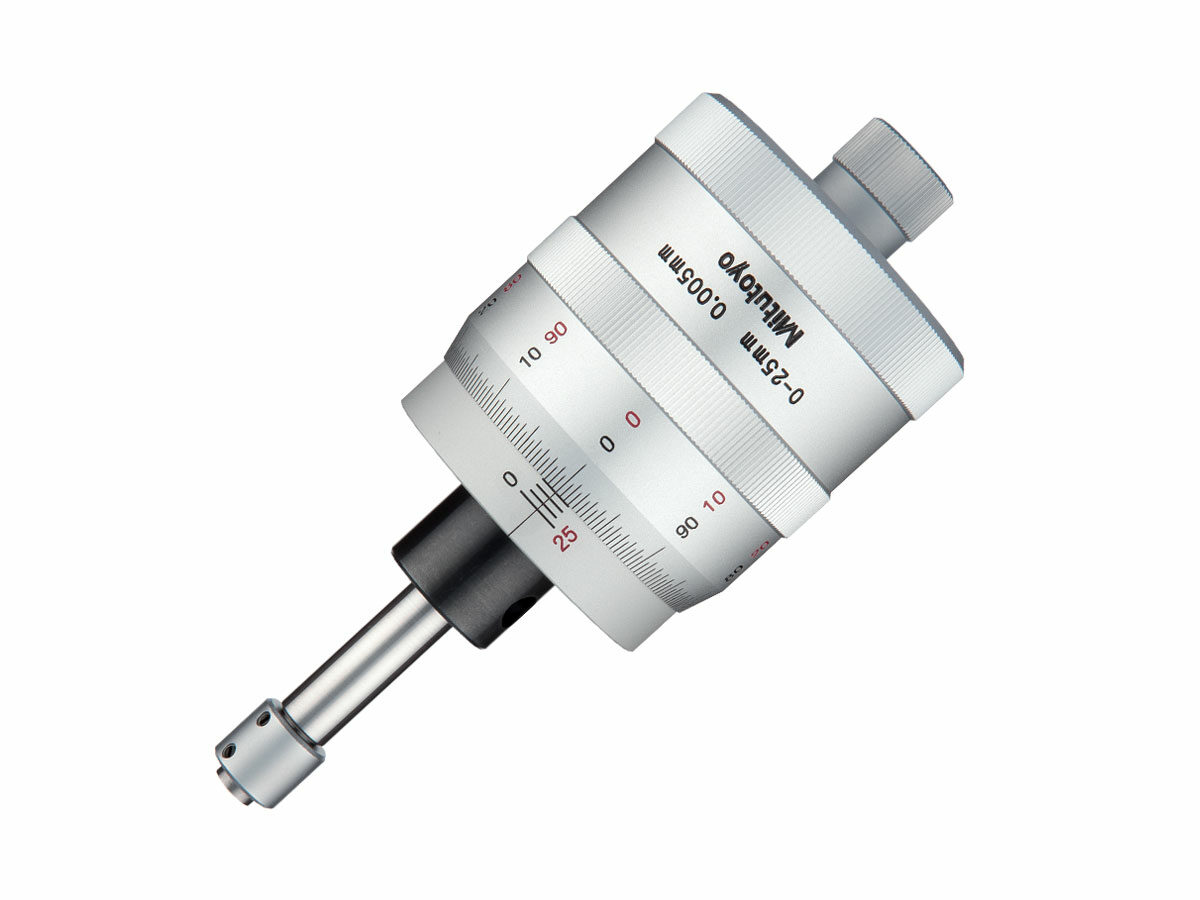

The Mitutoyo XY-stage micrometer heads are designed to make stage movements and adjustments easier and more precise. The micrometer heads have bi-directional graduations for easier measurement readings in both directions, and a floating thimble allows zero setting at any spindle position simple and accurate.
- Available in Metric and Inch models
- Mic head has a 49mm / 1.93” thimble diameter
- Spindle range is 25mm / 1”
- Spindle diameter is 6.35mm / .25”
- Mic head total length (at stroke end) is 7mm / 5.66”
- Spindle face is flat with a lapped surface and is constructed of hardened steel, available with spherical carbide tips (152-401, 152-402)
- Scale surface uses white anodized aluminum that resists corrosion
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Spindle Face: | Measuring Faces: | Spindle Type: | Stem Diameter: | Spindle pitch: | Remarks: | |
|---|
| 152-389 | — | Metric | 0-25mm | ±2µm | 0.005mm | Flat | Hardened Steel tip | Non-rotating | 18mm | 1mm | for Y-axis, bi-directional graduations |
| 152-390 | — | Metric | 0-25mm | ±2µm | 0.005mm | Flat | Hardened Steel tip | Non-rotating | 18mm | 1mm | for Y-axis, bi-directional graduations |
| 152-391 | — | Inch | 0-1″ | ±0.0001″ | 0.0001″ | Flat | Hardened Steel tip | Non-rotating | 0.709″ | 0.025″ | for Y-axis, bi-directional graduations |
| 152-392 | — | Inch | 0-1″ | ±0.0001″ | 0.0001″ | Flat | Hardened Steel tip | Non-rotating | 0.709″ | 0.025″ | for Y-axis, bi-directional graduations |
| 152-401 | — | Metric | 0-25mm | ±2µm | 0.001mm | Spherical (SR10) | Carbide tipped | Rotating | 18mm | 1mm | for Y-axis, w/vernier |
| 152-402 | — | Metric | 0-25mm | ±2µm | 0.001mm | Spherical (SR10) | Carbide tipped | Rotating | 18mm | 1mm | for Y-axis, w/vernier |
| 152-389 |
| 152-390 |
| 152-391 |
| 152-392 |
| 152-401 |
| 152-402 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Stem: | Plain |
|---|
| Scale Surface: | White anodized aluminum |
|---|
