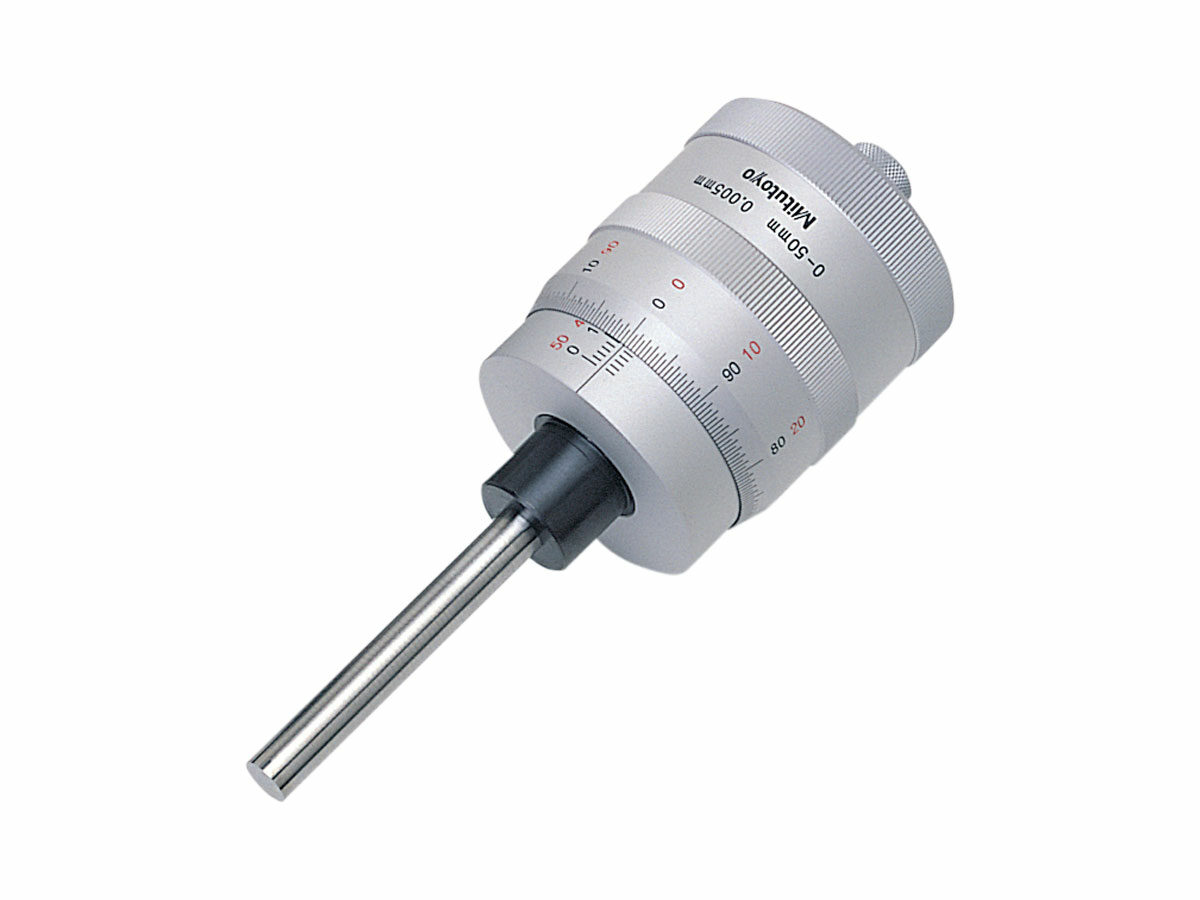

The larger diameter on the Mitutoyo fast feeding micrometer head with 1mm feed per revolution allows for quick, highly accurate workstage adjustments. The floating thimble is easy to zero set at any spindle locations, and its large size makes for easy reading and use. The spindle is constructed of hardened steel and has a flat, carbide measuring face which is lapped for lasting precision.
- Available in Metric and Inch models
- Mic head has a 49mm / 1.93” thimble diameter
- Spindle range is 50mm / 2”
- Spindle diameter 8mm / .315”
- Spindle pitch is 1mm / .039” per rev
- Mic head total length (at stroke end) 169mm / 6.65”
- Flat spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time
- Scale surface uses white anodized aluminum that resists corrosion
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Stem Diameter: | Spindle pitch: | |
|---|
| 197-101 | — | Metric | 0-50mm | ±5µm | 0.005mm | 18mm | 1mm |
| 197-201 | — | Inch | 0-2″ | ±0.0001″ | 0.0002″ | 0.709″ | 0.05″ |
Технические характеристики
| Technology: | Mechanical |
|---|
| Measuring Faces: | Flat (carbide tip) |
|---|
| Spindle Type: | Non-rotating |
|---|
| Stem: | Plain |
|---|
| Scale Surface: | White anodized aluminum |
|---|
| Remarks: | Bi-directional graduation |
|---|
