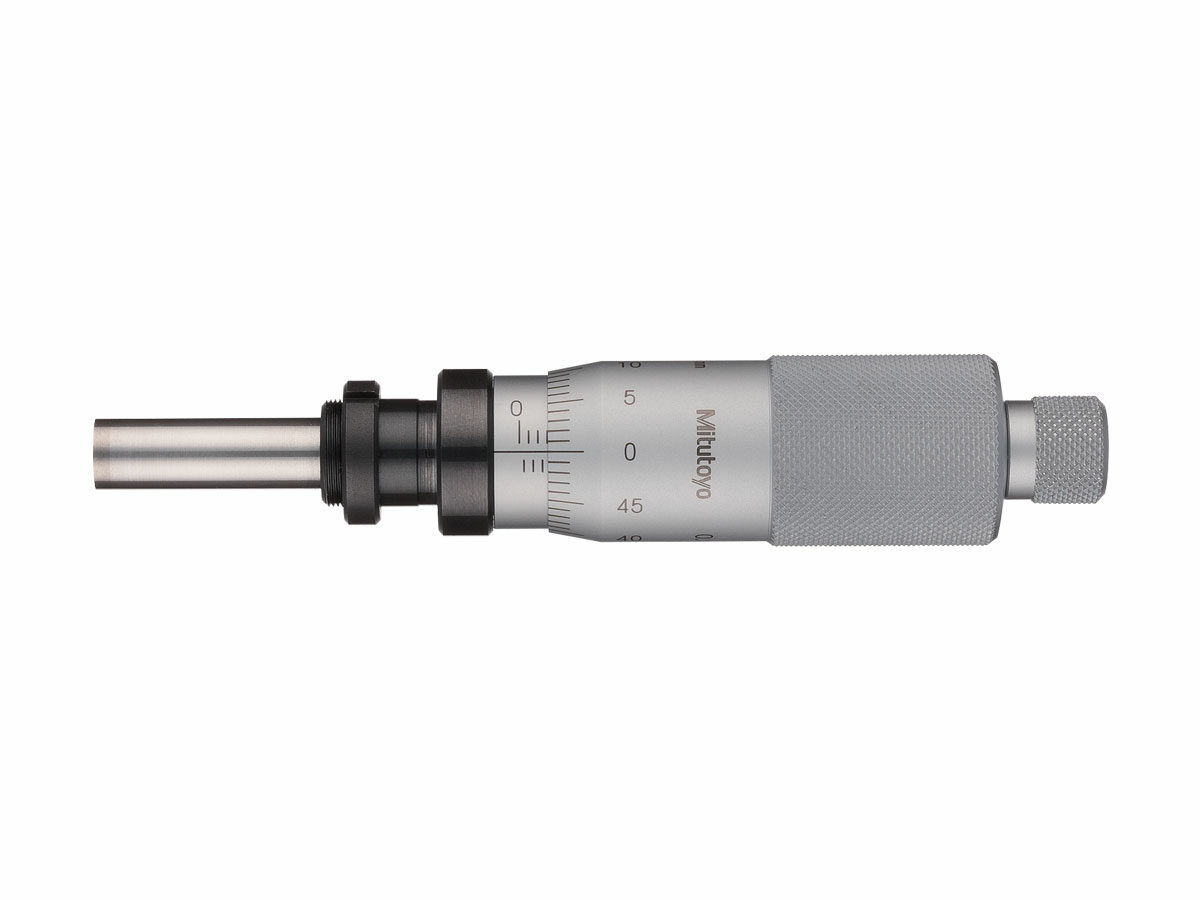

The differential screw mechanism in this Mitutoyo micrometer head provides extra-fine feeding of the spindle for highly accurate adjustments and measurements. Its non-rotating spindle eliminates torque for added precision. The spindle has a flat measuring face constructed of carbide and is lapped for lasting precision.
- Available in Metric and Inch models
- Mic head has a 21mm / .827” thimble diameter
- Metric spindle ranges available are 1mm, 2.5mm, and 13mm
- Inch spindle ranges available are .02”, .05”, and .5”
- Spindle diameters are 6.35mm / .25” and 8mm / .315”
- Mic head total lengths (at stroke end) are 7mm / 5.22”, 110.2mm / 4.34”, and 110.5mm / 4.35”
- Spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time and are available in flat or spherical
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
| Order No.: | Product Image: | Units: | Range: | Wide Range Accuracy: | Narrow Range Accuracy: | Graduation: | Spindle Face: | Measuring Faces: | Stem Diameter: | Spindle pitch: | |
|---|
| 110-101 | — | Metric | 0-2.5mm | ±5µm | ±1.5µm | 0.001mm | Flat | Carbide tipped | 12mm | 0.05mm |
| 110-102 | — | Metric | 0-2.5mm | ±5µm | ±1.5µm | 0.0001mm | Flat | Carbide tipped | 12mm | 0.05mm |
| 110-105 | — | Metric | 0-1mm | ±3µm | ±1.5µm | 0.001mm | Flat | Carbide tipped | 12mm | 0.05mm |
| 110-106 | — | Metric | 0-1mm | ±3µm | ±1.5µm | 0.0001mm | Flat | Carbide tipped | 12mm | 0.05mm |
| 110-107 | — | Metric | 0-1mm | ±3µm | ±1.5µm | 0.001mm | Spherical (SR10) | Carbide tipped | 12mm | 0.05mm |
| 110-108 | — | Metric | 0-1mm | ±3µm | ±1.5µm | 0.0001mm | Spherical (SR10) | Carbide tipped | 12mm | 0.05mm |
| 110-111 | — | Inch | 0-0.05″ | ±0.00025″ | ±0.00006in | 0.000020″ | Flat | Carbide tipped | 0.5″ | — |
| 110-112 | — | Inch | 0-0.05″ | ±0.00025″ | ±0.00006in | 0.000005″ | Flat | Carbide tipped | 0.5″ | — |
| 110-115 | — | Inch | 0-0.02″ | ±0.00015″ | ±0.00006in | 0.000020″ | Flat | Carbide tipped | 0.5″ | — |
| 110-116 | — | Inch | 0-0.02″ | ±0.00015″ | ±0.00006in | 0.000005″ | Flat | Carbide tipped | 0.5″ | — |
| 110-117 | — | Inch | 0-0.02″ | ±0.00015″ | ±0.00006in | 0.000020″ | Spherical (SR10) | Carbide tipped | 0.5″ | — |
| 110-118 | — | Inch | 0-0.02″ | ±0.00015″ | ±0.00006in | 0.000005″ | Spherical (SR10) | Carbide tipped | 0.5″ | — |
| 110-502 |  | Metric | 0-13mm | ±3µm | ±1.5µm | 0.0005mm | Spherical (SR3) | — | 9.5mm | 0.025mm |
| 110-504 | — | Inch | 0-0.50″ | ±0.00015″ | ±0.00006in | 0.000020″ | Spherical (SR3) | — | 0.375″ | — |
| 110-101 |
| 110-102 |
| 110-105 |
| 110-106 |
| 110-107 |
| 110-108 |
| 110-111 |
| 110-112 |
| 110-115 |
| 110-116 |
| 110-117 |
| 110-118 |
| 110-502 |
| 110-504 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Stem: | w/clamp nut |
|---|
| Scale Surface: | Hard chrome plating |
|---|
