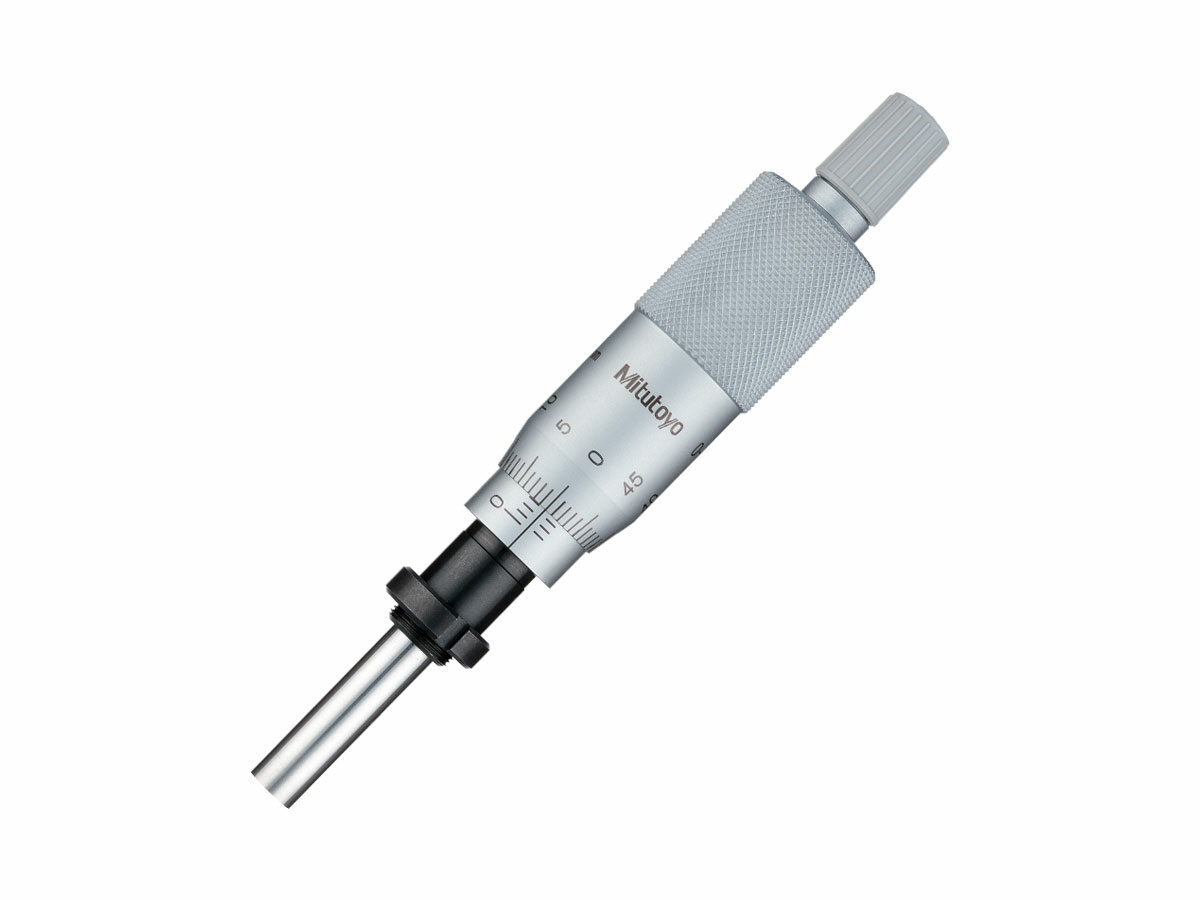

The Mitutoyo small-sized micrometer head delivers precise stage adjustments and measurements up to 25mm / 1”. Its carbide-tipped spindle is exceptionally flat, accurate and durable. The ratchet thimble mechanism provides an even, constant force.
- A long spindle type is available for a variety of applications
- Available in Metric and Inch models
- Mic head has an 18mm thimble diameter
- Mounting stem diameter is 10mm / .375”
- Spindle range is 25mm / 1”
- Spindle diameter is 6.35mm / .25”
- Mic head total lengths (at stroke end) are 134mm / 5.28” and 145.5mm / 5.73”
- Spindle faces have lapped surfaces and are constructed of carbide. Available in spherical or flat types
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Ratchet/Thimble: | Measuring Faces: | Stem Diameter: | Stem: | Spindle pitch: | Spindle Lock: | Remarks: | |
|---|
| 150-189 | — | Metric | 0-25mm | ±2µm | 0.001mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | No | w/vernier |
| 150-190 | — | Metric | 0-25mm | ±2µm | 0.001mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | No | w/vernier |
| 150-191 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | No | — |
| 150-192 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | No | — |
| 150-195 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | No | — |
| 150-196 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | No | — |
| 150-197 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Plain Thimble | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | — |
| 150-198 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Plain Thimble | Carbide tipped | 0.375″ | Plain | 0.025″ | No | — |
| 150-205 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | w/vernier |
| 150-206 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | No | w/vernier |
| 150-207 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | — |
| 150-208 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | No | — |
| 150-209 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | Yes | — |
| 150-210 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | Yes | — |
| 150-211 | — | Metric | 0-25mm | ±2µm | 0.01mm | Plain Thimble | Carbide tipped | 10mm | Plain | 0.5mm | Yes | — |
| 150-212 | — | Metric | 0-25mm | ±2µm | 0.01mm | Plain Thimble | Carbide tipped | 10mm | w/clamp nut | 0.5mm | Yes | — |
| 150-213 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | Yes | — |
| 150-214 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | Yes | — |
| 150-215 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | Yes | w/vernier |
| 150-216 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | Yes | w/vernier |
| 150-217 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Plain Thimble | Carbide tipped | 0.375″ | Plain | 0.025″ | Yes | — |
| 150-218 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Plain Thimble | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | Yes | — |
| 150-220 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | — | 10mm | w/clamp nut | 0.5mm | No | Long spindle |
| 150-221 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | — | 0.375″ | Plain | 0.025″ | No | Long spindle |
| 150-222 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | — | 0.375″ | w/clamp nut | 0.025″ | No | Long spindle |
| 150-801 |  | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | No | — |
| 150-802 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | No | — |
| 150-811 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | No | — |
| 150-812 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | — |
| 150-821 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | Plain | 0.5mm | No | Reverse reading |
| 150-822 | — | Metric | 0-25mm | ±2µm | 0.01mm | Ratchet Stop | Carbide tipped | 10mm | w/clamp nut | 0.5mm | No | Reverse reading |
| 150-831 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | Plain | 0.025″ | No | Reverse reading |
| 150-832 | — | Inch | 0-1″ | ±0.0001″ | 0.001″ | Ratchet Stop | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | Reverse reading |
| 150-189 |
| 150-190 |
| 150-191 |
| 150-192 |
| 150-195 |
| 150-196 |
| 150-197 |
| 150-198 |
| 150-205 |
| 150-206 |
| 150-207 |
| 150-208 |
| 150-209 |
| 150-210 |
| 150-211 |
| 150-212 |
| 150-213 |
| 150-214 |
| 150-215 |
| 150-216 |
| 150-217 |
| 150-218 |
| 150-220 |
| 150-221 |
| 150-222 |
| 150-801 |
| 150-802 |
| 150-811 |
| 150-812 |
| 150-821 |
| 150-822 |
| 150-831 |
| 150-832 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Scale Surface: | Hard chrome plating |
|---|
