Микрометрические головки большого диаметра

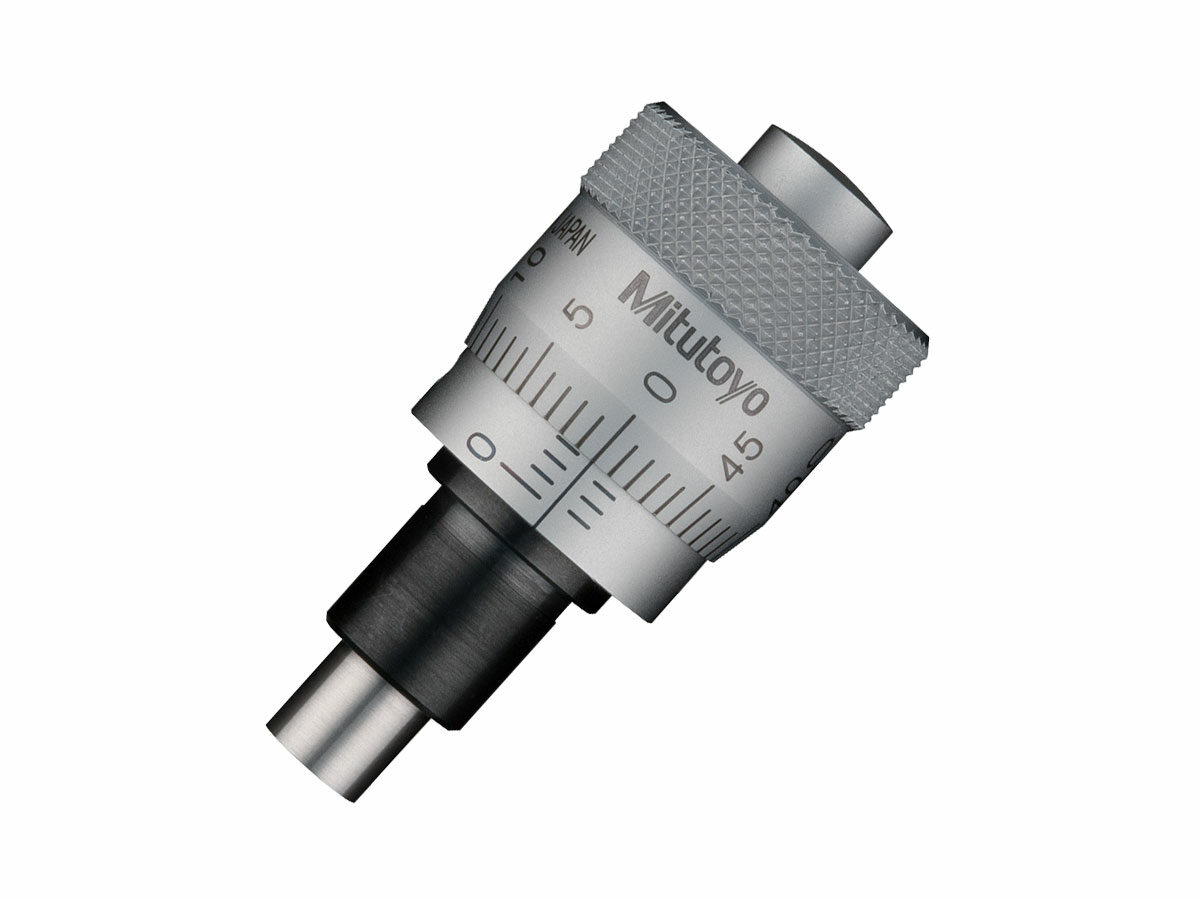

The Mitutoyo large thimble diameter micrometer heads provide highly accurate measurements and adjustments that are easier to read. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Available in Metric and Inch models
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 6.5mm / .256”
Mic head total lengths (at stroke end) are 48.5mm / 1.90” and 68mm / 2.67”
Three types of thimble diameters are available for each Metric and Inch models
Spindle faces are flat and have lapped surfaces and are constructed of ultra-hard SKS3 steel
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
Spindle screw threads are precision machined for incredibly precise movements

Order No.:	Product Image:	Units:	Range:	Accuracy:	Graduation:	Stem Diameter:	Stem:	Spindle pitch:	Thimble diameter:

Order No.:

148-301		Metric	0-6.5mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	15mm
148-302	—	Metric	0-6.5mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	15mm
148-303	—	Metric	0-6.5mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	20mm
148-304	—	Metric	0-6.5mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	20mm
148-305	—	Metric	0-6.5mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	29mm
148-306	—	Metric	0-6.5mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	29mm
148-307	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	15mm
148-308	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	15mm
148-309	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	20mm
148-310	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	20mm
148-311	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	Plain	0.5mm	29mm
148-312	—	Metric	0-13mm	±2µm	0.01mm	9.5mm	w/clamp nut	0.5mm	29mm
148-351	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	Plain	0.025″	0.59″
148-352	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	0.59″
148-353	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	Plain	0.025″	0.79″
148-354	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	0.79″
148-355	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	Plain	0.025″	1.14″
148-356	—	Inch	0-0.25″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	1.14″
148-357	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	Plain	0.025″	0.59″
148-358	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	0.59″
148-359	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	Plain	0.025″	0.79″
148-360	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	0.79″
148-361	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	Plain	0.025″	1.14″
148-362	—	Inch	0-0.50″	±0.0001″	0.001″	0.375″	w/clamp nut	0.025″	1.14″

148-301
148-302
148-303
148-304
148-305
148-306
148-307
148-308
148-309
148-310
148-311
148-312
148-351
148-352
148-353
148-354
148-355
148-356
148-357
148-358
148-359
148-360
148-361
148-362

Технические характеристики

Technology:	Mechanical
Measuring Faces:	Flat
Scale Surface:	Hard chrome plating
