Микрометр высоты обжима

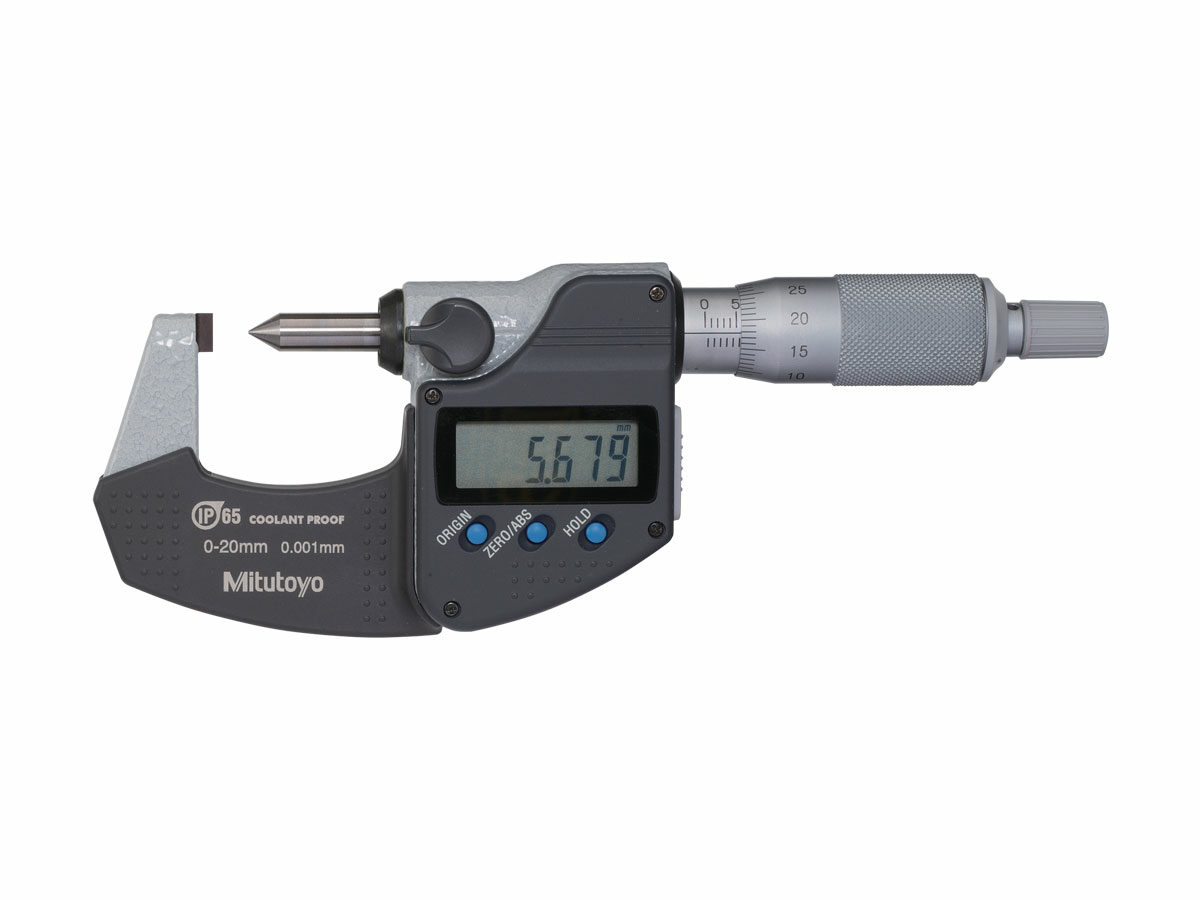

Микрометр Mitutoyo Digimatic с защитой от охлаждающей жидкости предназначен для измерения высоты электрических обжимных контактов.

The Mitutoyo digital crimp height micrometer measures the contact height of a connector once crimped with a wire. The micrometer»s pointed spindle and blade anvil give precise position for highly accurate measurements. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., on most shop floor environments
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Resolution:	Accuracy:	Graduation:	Optional Accessories:

Order No.:

342-271-30		Metric	0-20mm	0.001mm	±3µm	—	—
342-371-30		Metric, Inch	0-8″ / 0-20mm	0.00005″ / 0.001mm	±.00015″ / ±3µm	0.001″	—

342-271-30

342-371-30

Технические характеристики

Technology:	Digimatic
IP Rating:	IP65
SPC Output:	Yes
Ratchet/Thimble:	Ratchet Stop
Mass:	270g
Display:	LCD
Battery:	SR44 (1 pc.) 938882
Battery Life:	Approx. 2.4 years under normal use

Вопросы и ответы

Как проверить совместимость товара?

Сравните артикул, технические параметры и формат исполнения с требованиями вашей модели оборудования.

Можно ли заказать партию?

Да, для партийных закупок доступны отдельные условия, ориентируйтесь на количество и сроки поставки.
