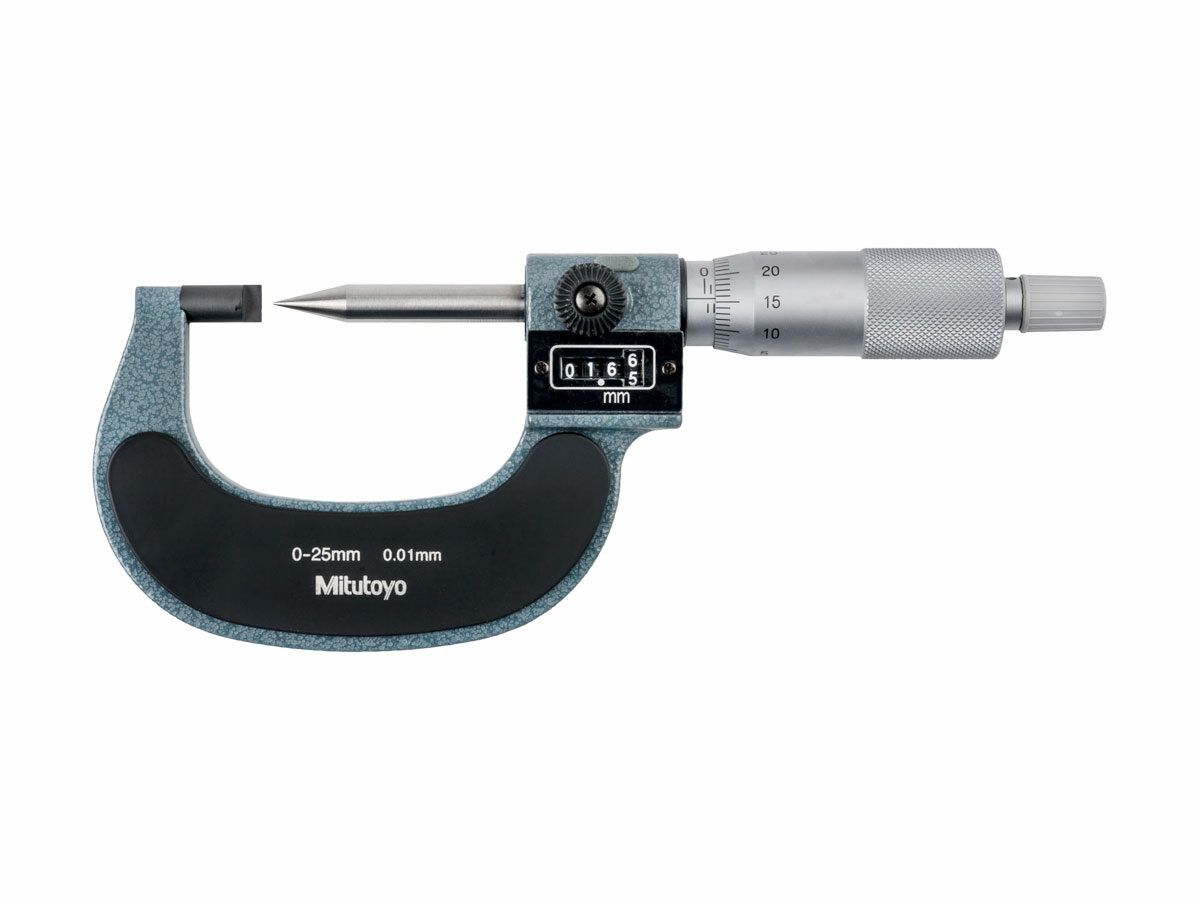

The Mitutoyo crimp height micrometer measures the contact height of a connector once crimped with a wire. The micrometer»s pointed spindle and blade anvil delivers precise position for highly accurate measurements. A mechanical digit counter displays readings to .0001” for easier viewing and recording. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
- Vernier scale graduated to .001” on the thimble allows precise outer dimension measurements
- A spindle lock provides a secure locking of the measurement position for easier recording
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame is constructed of high-grade steel and has a baked enamel finish for durability
- Supplied in fitted plastic case
| Order No.: | Product Image: | Graduation: | |
|---|
| 142-402 | — | 0.010mm |
| 142-403 | — | 0.001mm |
Технические характеристики
| Technology: | Mechanical Counter |
|---|
| Units: | Metric |
|---|
| Range: | 0-25mm |
|---|
| Accuracy: | ±3µm |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
| Mass: | 200g |
|---|
