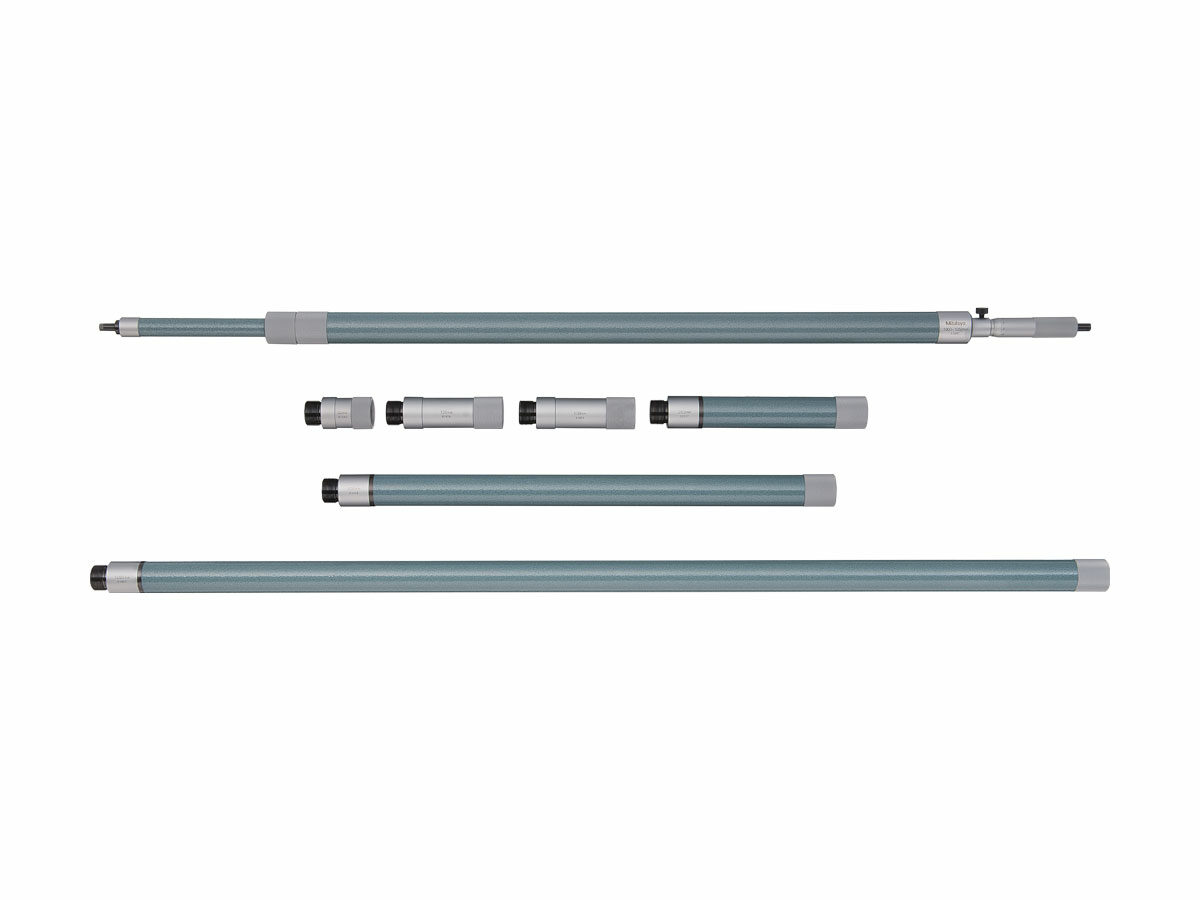

Механический трубчатый внутренний тип удлинительной трубы большого диаметра микрометров

Механический трубчатый внутренний микрометр Mitutoyo с удлинительными трубками большого диаметра позволяет измерять широкий диапазон внутренних размеров с высокой надежностью и точностью.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo mechanical tubular inside micrometer includes a set of large-diameter hollow extension pipes to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. The extension pipes are lighter and more cost effective than extension rods, while providing durability and accuracy. Slow head travel provides fine measurement position, while a locking clamp holds measurements in place for easier reading. The extension pipes have knurled collars for easy, secure installation and removal.

  • Available in Metric and Inch sets
  • Optional setting rings are available
  • Solid extension rod permits measuring various dimensions with reliability and durability
  • Vernier scale on the sleeve offers exact measurements
  • Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
  • Supplied in fitted wooden case

Order No.:Product Image:Units:Range:Graduation:Accuracy:Travel of Micrometer Head:Extension pipes:

Order No.:

140-157Metric1000 — 2000mm0.01mm±6µm50mm50, 200, 100 (2 pcs), 500
140-158Metric1000 — 3000mm0.01mm±6µm50mm50, 200, 100 (2 pcs), 500, 1000
140-159Metric1000 — 4000mm0.01mm±6µm50mm50, 200, 100 (2 pcs), 500, 1000 (2pcs)
140-160Metric1000 — 5000mm0.01mm±6µm50mm50, 200, 100 (2 pcs), 500, 1000 (3pcs)
140-161Inch40-80″0.001″±0.0003″2″2, 8, 4 (2 pcs), 20
140-162Inch40-120″0.001″±0.0003″2″2, 8, 4 (2 pcs), 20, 40
140-163Inch40-160″0.001″±0.0003″2″2, 8, 4 (2 pcs), 20, 40 (2 pcs)
140-164Inch40-200″0.001″±0.0003″2″2, 8, 4 (2 pcs), 20, 40 (3 pcs)

140-157
140-158
140-159
140-160
140-161
140-162
140-163
140-164

Технические характеристики

Technology:Mechanical
Type:Extension pipe
