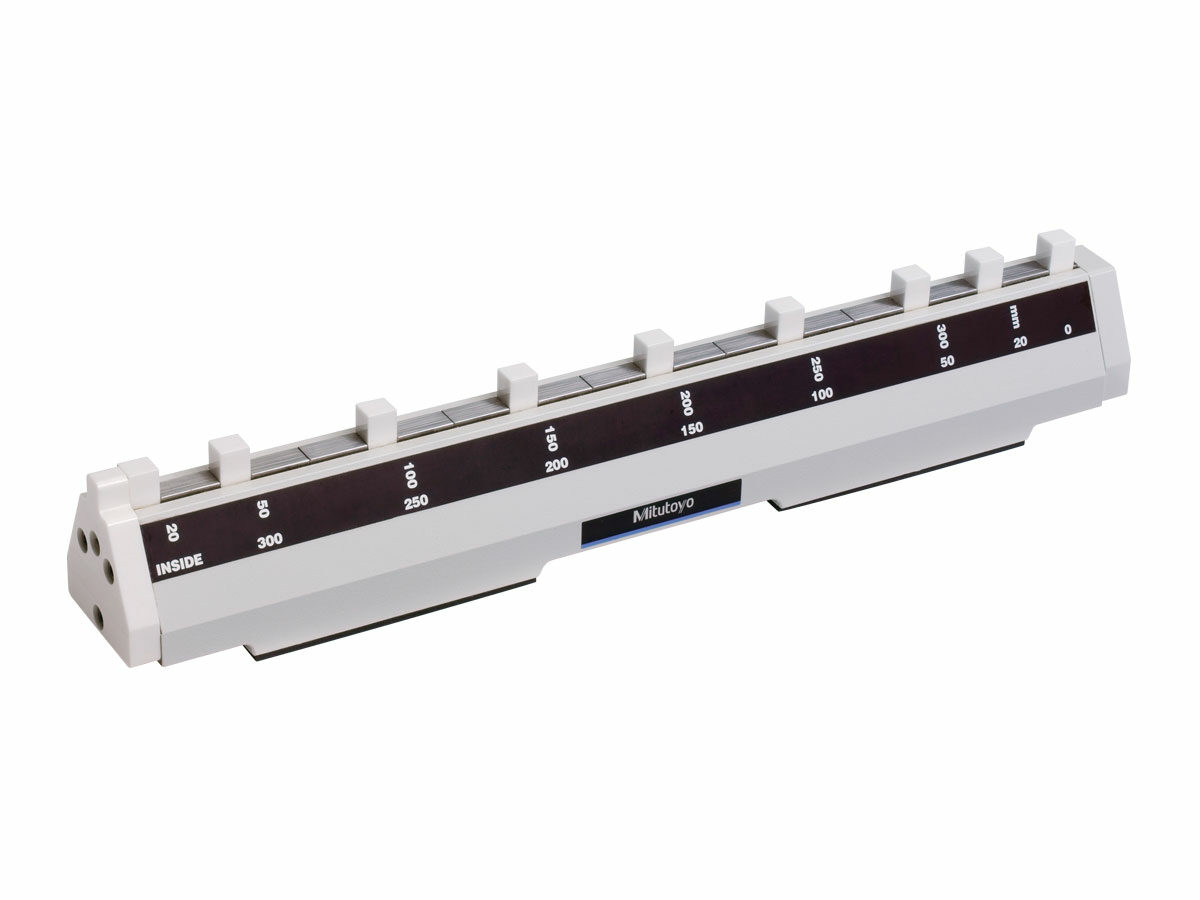

The CERA Caliper Checker is a reference gage that supports the calibration of all types of calipers for accuracy. Comprised of permanently wrung, high-grade CERA gage blocks in a protective casting, the Caliper Checker confirms reference measurements in 50mm increments. The checker also verifies and adjusts a caliper»s base zero position. The CERA Caliper Checker stands perpendicular to a surface for height gage inspection.
- Available in Metric and Inch models
- Available in 0-300mm, 0-600mm or 0-12”
- Made of zirconia-based ceramic CERA measuring blocks that are dimensionally stable and corrosion resistant
| Order No.: | Product Image: | Units: | Range: | Block pitch accuracy (20-300): | Block pitch accuracy (250-600): | Block pitch accuracy: | Parallelism of Blocks (20-300): | Parallelism of Blocks (350-600): | Parallelism of Blocks: | Mass: | Remarks: | Optional Accessories: | |
|---|
| 515-555 | — | Metric | 0-300mm | ±5µm | — | — | 2µm | — | — | 4.0kg | Outside measurement: 20, 50, 100, 150, 200, 250, 300mm Inside measurement: 20, 300mm | — |
| 515-556-2 | — | Metric | 0-600mm | ±5µm | ±7µm | — | 2µm | 4µm | — | 8.5kg | Outside measurement: 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600mm Inside measurement: 20, 600mm | — |
| 515-565 | — | Inch | 0-12″ | — | — | ±0.0002″ | — | — | 0.00008″ | 4.0kg | Outside measurement: 1″, 2″, 4″, 6″, 8″, 10″, 12″ Inside measurement: 1″, 12″ | — |
