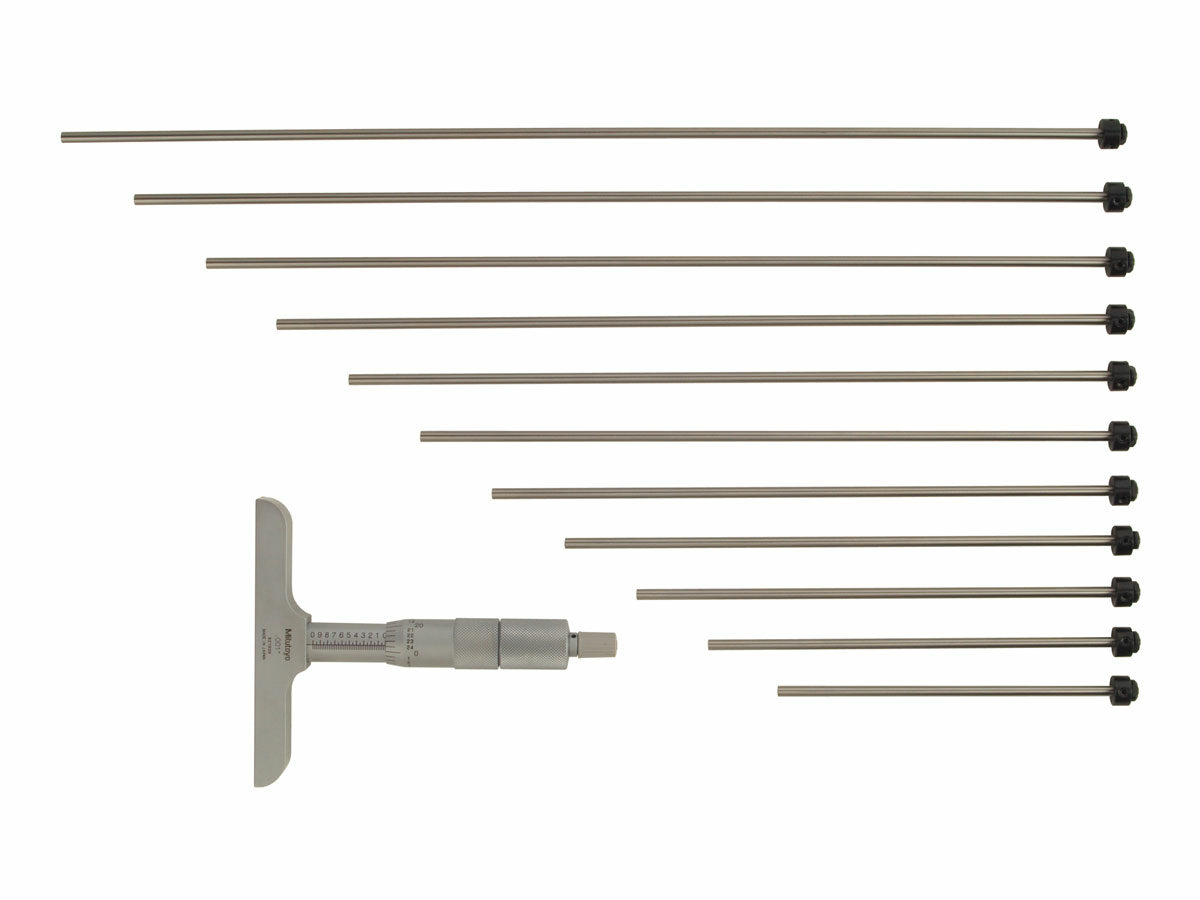

Механический микрометр глубины со сменным стержнем
Микрометр глубины Mitutoyo со сменными стержнями измеряет широкий диапазон глубин с высокой точностью. Шкала нониуса обеспечивает точные измерения в точных единицах.
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
The Mitutoyo interchangeable rod type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The depth micrometer»s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.
Available in Metric and Inch models
Metric models available in ranges: 0-50mm, 0-100mm and 150mm
Inch models available in ranges: 0-4”, 0-6” and 0-12”
Rod length can be adjusted in 25mm/1” increments
Rod diameters are 4mm
Measuring rod clamps provide added measurement stability
Supplied with a fitted plastic case
Order No.:
Product Image:
Units:
Range:
Graduation:
Accuracy:
Flatness of reference surface base:
Flatness of measuring face:
Parallelism between reference face and measuring rod face:
Zero point error of rods:
Measuring rod diameter:
Base size:
Rod quantity:
Order No.:
129-109
Metric
0-50mm
0.01mm
±3µm
1.3µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
63.5 x 16mm
2
129-111
—
Metric
0-100mm
0.01mm
±3µm
1.3µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
63.5 x 16mm
4
129-112
—
Metric
0-150mm
0.01mm
±3µm
1.3µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
63.5 x 16mm
6
129-115
—
Metric
0-100mm
0.01mm
±3µm
2µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
101.6 x 16mm
4
129-116
—
Metric
0-150mm
0.01mm
±3µm
2µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
101.6 x 16mm
6
129-127
—
Inch
0-4″
0.001″
±.00015″
0.00005″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0002″
0.157″
2.5 x .63″
4
129-128
—
Inch
0-6″
0.001″
±.00015″
0.00005″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0002″
0.157″
2.5 x .63″
6
129-131
Inch
0-4″
0.001″
±.00015″
0.00008″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0002″
0.157″
4 x .63″
4
129-132
—
Inch
0-6″
0.001″
±.00015″
0.00008″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0002″
0.157″
4 x .63″
6
129-149
—
Inch
0-12″
0.001″
±.00015″
0.00005″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0003″
0.157″
2.5 x .63″
12
129-150
—
Inch
0-12″
0.001″
±.00015″
0.00008″
0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
