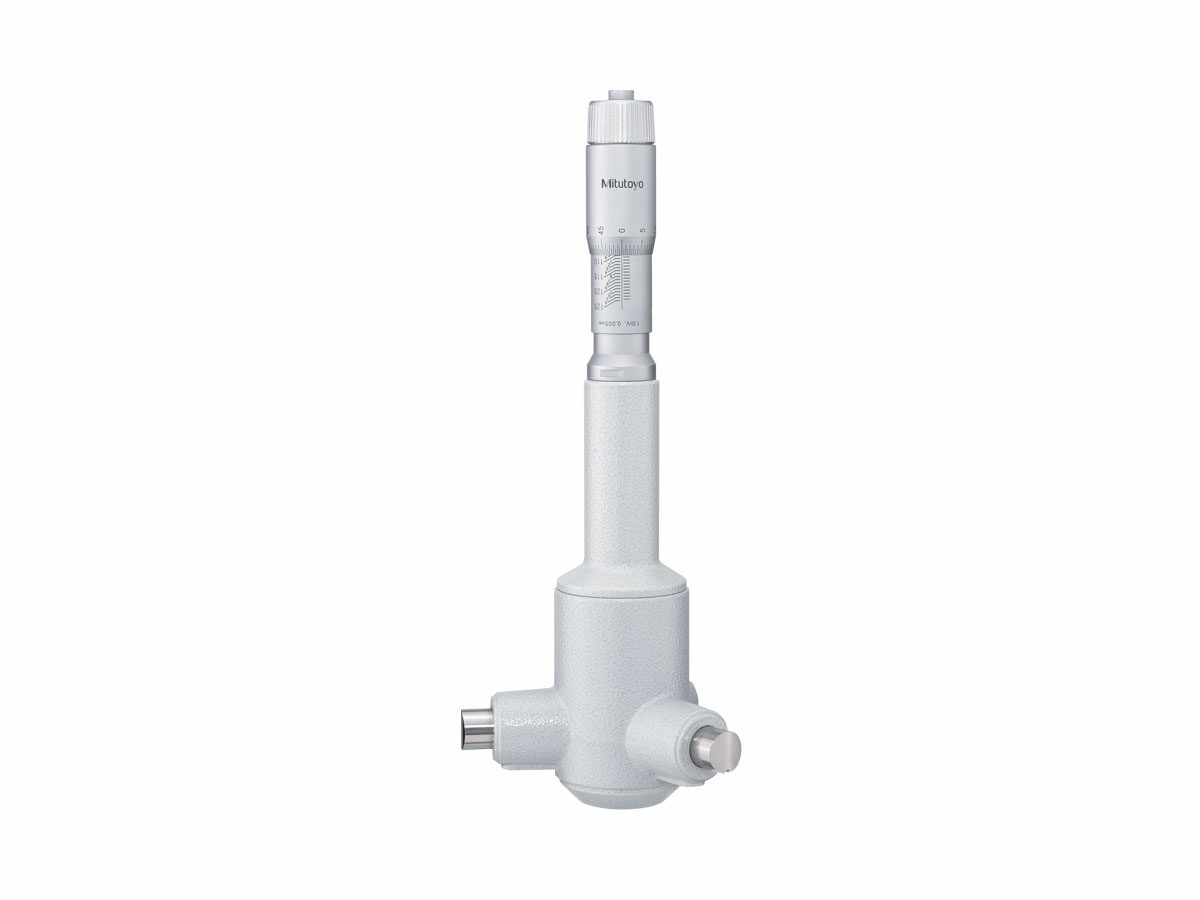

Механические трехточечные нутрометры Холтеста (тип II)

В механическом трехточечном внутреннем микрометре Mitutoyo Holtest (тип II) используются три самоцентрирующихся пятки, изготовленные из легированной стали, для точного и эффективного измерения внутренних размеров отверстий.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo mechanical Holtest internal micrometer features three alloy steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements. A hardened steel spindle with a carbide ball and cone with a carbide pin ensure accuracy and durability when extending and retracting the anvils. The holtest»s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.

Available in Metric and Inch models
Optional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Design allows for measurements closer to the bottom of blind bore holes
Scale on thimble and sleeve is laser etched for easier reading in all conditions
Holtests up to 100mm / 4″ diameter measurements supplied in a fitted plastic case
Holtests over 100mm / 4″ diameter measurements supplied in a wooden case

Order No.:	Product Image:	Units:	Range:	Graduation:	Accuracy:	Main Body Assembly:	Mass:	Extension Rod (Optional):

Order No.:

368-764	—	Metric	12 — 16mm	0.005mm	±3µm	04AZA839	150g	952621
368-765	—	Metric	16 — 20mm	0.005mm	±3µm	04AZA840	150g	952621
368-766	—	Metric	20 — 25mm	0.005mm	±3µm	04AZA848	260g	952622
368-767	—	Metric	25 — 30mm	0.005mm	±3µm	04AZA849	280g	952622
368-768	—	Metric	30 — 40mm	0.005mm	±3µm	04AZA857	290g	952622
368-769		Metric	40 — 50mm	0.005mm	±3µm	04AZA858	330g	952622
368-770		Metric	50 — 63mm	0.005mm	±3µm	04AZA870	440g	952623
368-771	—	Metric	62 — 75mm	0.005mm	±4µm	04AZA871	450g	952623
368-772	—	Metric	75 — 88mm	0.005mm	±4µm	04AZA872	560g	952623
368-773	—	Metric	87 — 100mm	0.005mm	±4µm	04AZA873	570g	952623
368-774	—	Metric	100 — 125mm	0.005mm	±5µm	04AZA895	1020g	952623
368-775	—	Metric	125 — 150mm	0.005mm	±5µm	04AZA896	1110g	952623
368-776	—	Metric	150 — 175mm	0.005mm	±5µm	04AZA897	1200g	952623
368-777	—	Metric	175 — 200mm	0.005mm	±5µm	04AZA898	1300g	952623
368-778		Metric	200 — 225mm	0.005mm	±6µm	04AZA899	1420g	952623
368-779	—	Metric	225 — 250mm	0.005mm	±6µm	04AZA900	1540g	952623
368-780		Metric	250 — 275mm	0.005mm	±6µm	04AZA901	1690g	952623
368-781	—	Metric	275 — 300mm	0.005mm	±6µm	04AZA902	1860g	952623
368-864		Inch	0.5-0.65″	0.0002″	±0.00015″	04AZA841	150g	952621
368-865		Inch	0.65-0.8″	0.0002″	±0.00015″	04AZA842	150g	952621
368-866		Inch	0.8-1″	0.0002″	±0.00015″	04AZA850	260g	952622
368-867	—	Inch	1-1.2″	0.0002″	±0.00015″	04AZA851	280g	952622
368-868		Inch	1.2-1.6″	0.0002″	±0.00015″	04AZA859	290g	952622
368-869		Inch	1.6-2″	0.0002″	±0.00015″	04AZA860	330g	952622
368-870		Inch	2-2.5″	0.0002″	±0.00015″	04AZA874	440g	952623
368-871		Inch	2.5-3″	0.0002″	±0.00020″	04AZA875	450g	952623
368-872	—	Inch	3-3.5″	0.0002″	±0.00020″	04AZA876	560g	952623
368-873	—	Inch	3.5-4″	0.0002″	±0.00020″	04AZA877	570g	952623
368-874	—	Inch	4-5″	0.0002″	±0.00025″	04AZA903	1020g	952623
368-875	—	Inch	5-6″	0.0002″	±0.00025″	04AZA904	1110g	952623
368-876		Inch	6-7″	0.0002″	±0.00025″	04AZA905	1200g	952623
368-877	—	Inch	7-8″	0.0002″	±0.00025″	04AZA906	1300g	952623
368-878	—	Inch	8-9″	0.0002″	±0.00030″	04AZA907	1420g	952623
368-879		Inch	9-10″	0.0002″	±0.00030″	04AZA908	1540g	952623
368-880		Inch	10-11″	0.0002″	±0.00030″	04AZA909	1690g	952623
368-881	—	Inch	11-12″	0.0002″	±0.00030″	04AZA910	1860g	952623

368-764
368-765
368-766
368-767
368-768
368-769
368-770
368-771
368-772
368-773
368-774
368-775
368-776
368-777
368-778
368-779
368-780
368-781
368-864
368-865
368-866
368-867
368-868
368-869
368-870
368-871
368-872
368-873
368-874
368-875
368-876
368-877
368-878
368-879
368-880
368-881

Технические характеристики

Technology:	Mechanical
Contact Point:	Alloy Steel
Measuring Method:	Three-point method
Ratchet/Thimble:	Ratchet Stop
