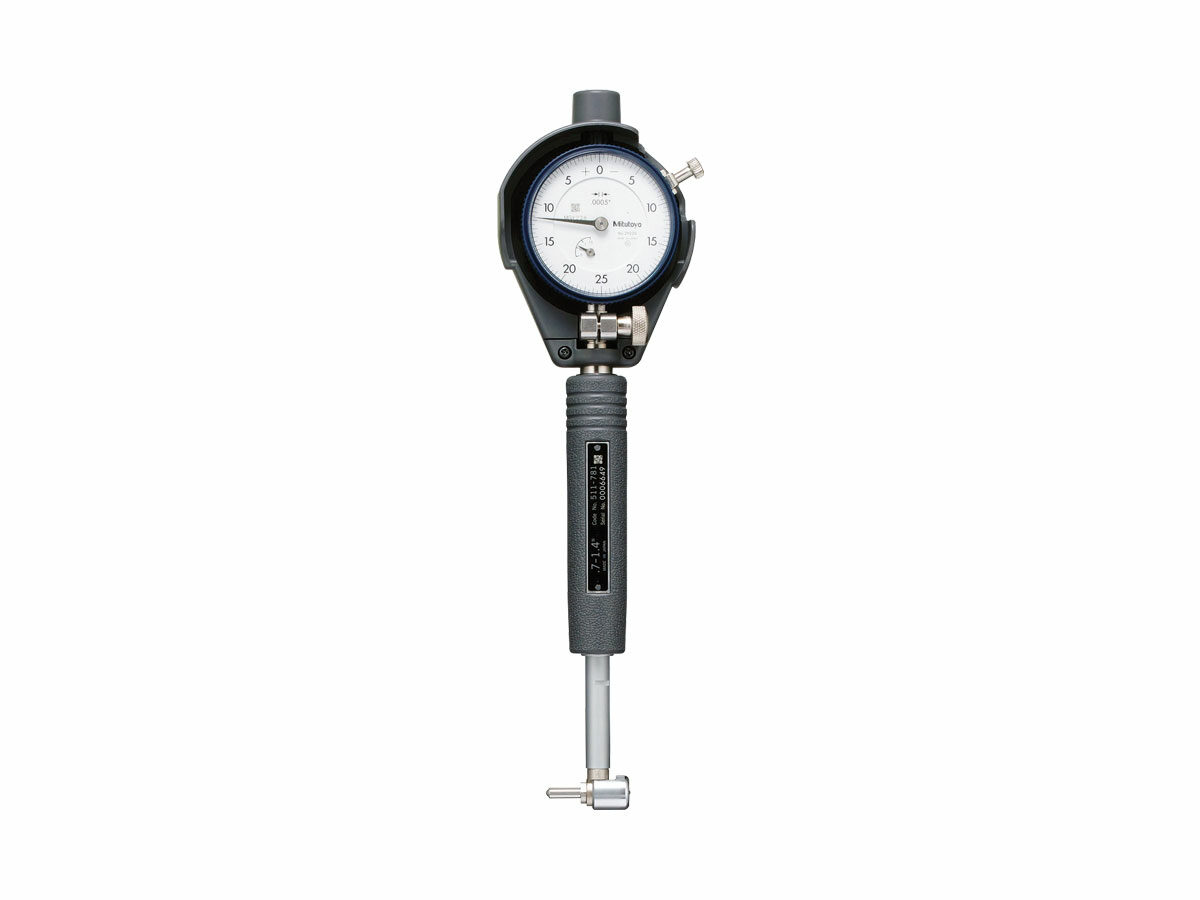

The Mitutoyo short leg bore gage is ideal for measuring inside dimensions of shallow bores and holes. Due to its short-leg design, this bore gage is more compact, lighter and easier to use than bigger bore gages while maintaining excellent accuracy. A two-point contact system detects geometry anomalies such as ovalness and taper.
- Available in Inch models
- Inch models have a graduation option of .0005” and .0001”
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Gage stem diameter is .375”
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Includes various anvils and spacers depending on size of gage ordered
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Graduation: | Dial Gage: | Number of anvils: | Number of spacers: | |
|---|
| 511-786-20 | — | 0.7-1.4″ | 0.0005″ | 2922AB | 9 | 2 |
| 511-787-20 | — | 1.4-2.5″ | 0.0005″ | 2922AB | 6 | 4 |
| 511-788-20 | — | 2-6″ | 0.0005″ | 2922AB | 11 (2″ Sub Anvil) | 4 |
| 511-789-20 | — | 4-6.5″ | 0.0005″ | 2922AB | 13 | 4 |
| 511-791-20 | — | 0.7-1.4″ | 0.0001″ | 2923AB-10 | 9 | 2 |
| 511-792-20 | — | 1.4-2.5″ | 0.0001″ | 2923AB-10 | 6 | 4 |
| 511-793-20 | — | 2-6″ | 0.0001″ | 2923AB-10 | 11 (2″ Sub Anvil) | 4 |
| 511-794-20 | — | 4-6.5″ | 0.0001″ | 2923AB-10 | 13 | 4 |
| 511-786-20 |
| 511-787-20 |
| 511-788-20 |
| 511-789-20 |
| 511-791-20 |
| 511-792-20 |
| 511-793-20 |
| 511-794-20 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Contact Point: | Carbide Tipped |
|---|
| Units: | Imch |
|---|
| Accuracy: | 0.00008′ |
|---|
| Repeatability: | 0.00002′ |
|---|
| Adjacent Error: | 0.00004′ |
|---|
| Stem Diameter: | 3/8′ |
|---|
| With Dial Gage Protective Cover (21DZA000): | Yes |
|---|
