Механические трехточечные/двухточечные нутрометры Холтеста

В механическом трехточечном внутреннем микрометре Mitutoyo Holtest используются три самоцентрирующихся пятки с прецизионными контактными точками для точного и эффективного измерения внутренних размеров отверстий.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo mechanical Holtest internal micrometer features three hardened-steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements. Contact points are coated with Titanium Nitride (TiN)* for added durability and precision. The holtest»s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.

  • Available in Metric and Inch models
  • Optional extension rod allows for measuring deep holes
  • Optional setting rings for zero point adjustment are available
  • Scale on thimble and sleeve is laser etched for easier reading in all conditions
  • Holtests up to 100mm / 4″ diameter measurements supplied in a fitted plastic case
  • Holtests over 100mm / 4″ diameter measurements supplied in a wooden case

* Models under 5-6mm / .24-.28″ are carbide

Order No.:Product Image:Units:Range:Graduation:Accuracy:Mass:Contact Point:Measuring Method:Extension Rod (Optional):

Order No.:

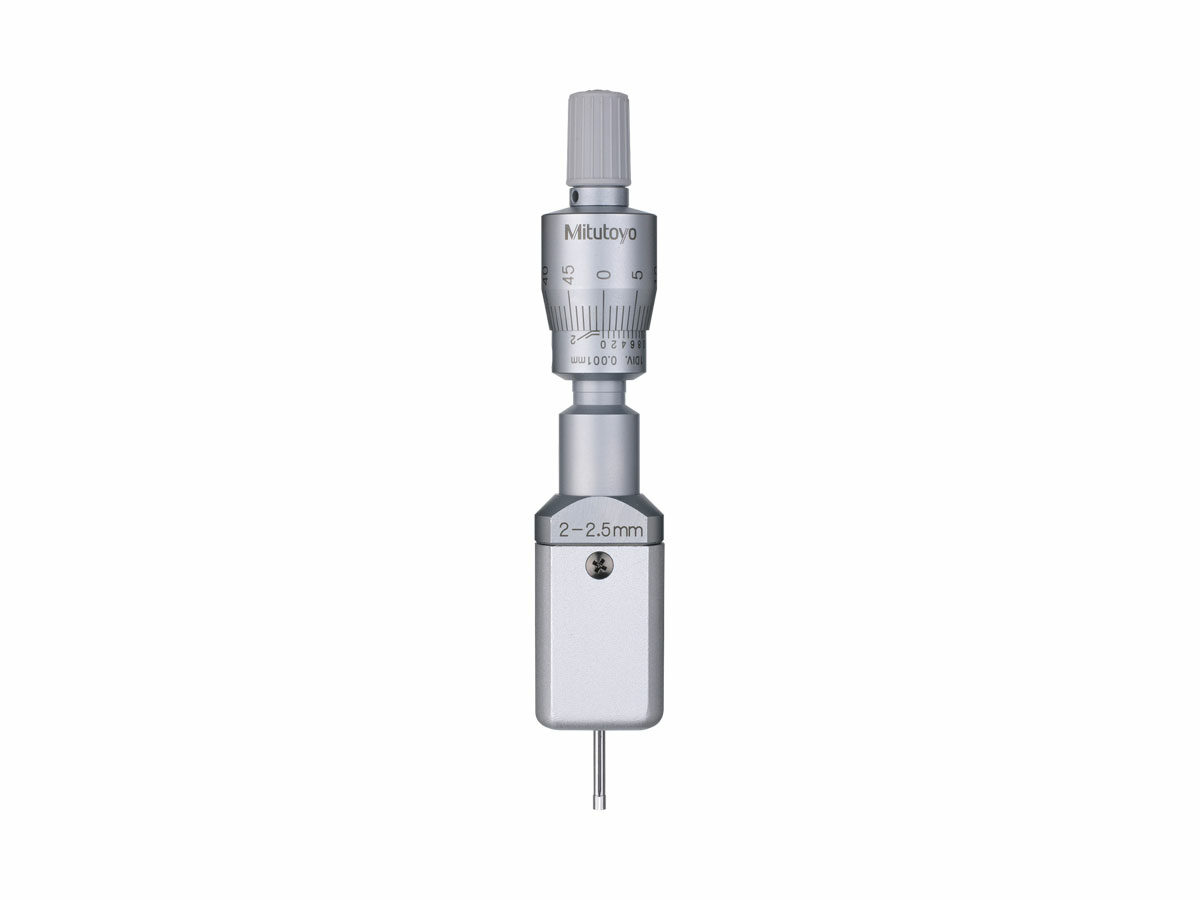

368-001Metric2 — 2.5mm0.001mm±2µm88gCarbideTwo-Point method
368-002Metric2.5 — 3mm0.001mm±2µm88gCarbideTwo-Point method
368-003Metric3 — 4mm0.001mm±2µm91gCarbideTwo-Point method
368-004Metric4 — 5mm0.001mm±2µm91gCarbideTwo-Point method
368-005Metric5 — 6mm0.001mm±2µm91gCarbideTwo-Point method
368-021Inch.08-0.1″0.0001″±0.0001″88gCarbideTwo-Point method
368-022Inch1-0.12″0.0001″±0.0001″88gCarbideTwo-Point method
368-023Inch12-0.16″0.0001″±0.0001″91gCarbideTwo-Point method
368-024Inch16-0.2″0.0001″±0.0001″91gCarbideTwo-Point method
368-025Inch2-0.24″0.0001″±0.0001″91gCarbideTwo-Point method
368-026Inch24-0.28″0.0001″±0.0001″91gCarbideTwo-Point method
368-161Metric6 — 8mm0.001mm±3µm57gTiN coatingThree-point method952322
368-162Metric8 — 10mm0.001mm±3µm58gTiN coatingThree-point method952322
368-163Metric10 — 12mm0.001mm±3µm59gTiN coatingThree-point method952322
368-164Metric12 — 16mm0.005mm±3µm140gTiN coatingThree-point method952621
368-165Metric16 — 20mm0.005mm±3µm145gTiN coatingThree-point method952621
368-166Metric20 — 25mm0.005mm±3µm250gTiN coatingThree-point method962622
368-167Metric25 — 30mm0.005mm±3µm270gTiN coatingThree-point method962622
368-168Metric30 — 40mm0.005mm±3µm290gTiN coatingThree-point method962622
368-169Metric40 — 50mm0.005mm±3µm330gTiN coatingThree-point method962622
368-170Metric50 — 63mm0.005mm±3µm440gTiN coatingThree-point method952623
368-171Metric62 — 75mm0.005mm±4µm450gTiN coatingThree-point method952623
368-172Metric75 — 88mm0.005mm±4µm490gTiN coatingThree-point method952623
368-173Metric87 — 100mm0.005mm±4µm500gTiN coatingThree-point method952623
368-174Metric100 — 125mm0.005mm±5µm1050gTiN coatingThree-point method952623
368-175Metric125 — 150mm0.005mm±5µm1120gTiN coatingThree-point method952623
368-176Metric150 — 175mm0.005mm±5µm1190gTiN coatingThree-point method952623
368-177Metric175 — 200mm0.005mm±5µm1260gTiN coatingThree-point method952623
368-178Metric200 — 225mm0.005mm±6µm1420gTiN coatingThree-point method952623
368-179Metric225 — 250mm0.005mm±6µm1580gTiN coatingThree-point method952623
368-180Metric250 — 275mm0.005mm±6µm1600gTiN coatingThree-point method952623
368-181Metric275 — 300mm0.005mm±6µm1690gTiN coatingThree-point method952623
368-261Inch.275-0.35″0.0001″±0.0001″57gTiN coatingThree-point method952322
368-262Inch35-0.425″0.0001″±0.0001″58gTiN coatingThree-point method952322
368-263Inch.425-0.5″0.0001″±0.0001″59gTiN coatingThree-point method952322
368-264Inch5-0.65″0.0002″±0.00015″140gTiN coatingThree-point method952621
368-265Inch.65-0.8″0.0002″±0.00015″145gTiN coatingThree-point method952621
368-266Inch8-1″0.0002″±0.00015″250gTiN coatingThree-point method962622
368-267Inch1-1.2″0.0002″±0.00015″270gTiN coatingThree-point method962622
368-268Inch1.2-1.6″0.0002″±0.00015″290gTiN coatingThree-point method962622
368-269Inch1.6-2″0.0002″±0.00015″330gTiN coatingThree-point method962622
368-270Inch2-2.5″0.0002″±0.00015″440gTiN coatingThree-point method952623

368-001
368-002
368-003
368-004
368-005
368-021
368-022
368-023
368-024
368-025
368-026
368-161
368-162
368-163
368-164
368-165
368-166
368-167
368-168
368-169
368-170
368-171
368-172
368-173
368-174
368-175
368-176
368-177
368-178
368-179
368-180
368-181
368-261
368-262
368-263
368-264
368-265
368-266
368-267
368-268
368-269
368-270

Технические характеристики

Technology:Mechanical
Ratchet/Thimble:Ratchet Stop
