Standard — DIN 32876 Coefficient of linear expansion — 0,15 µm/°C Dimensions — Fixing shank: Ø 8 mm Insert thread: M2,5 Insert with ball tip: Ø 3 mm Cable: 2 m (detachable model delivered without cable) Connector: 5p DIN45322 Degree of protection — IP65 Weight — Mobile weight: 8 g Power supply — Supply frequency: 13 kHz (± 5 %) Max. mechanical frequency: 60 Hz Remark(s) — CAD files available on request Downloadable data sheets on www.tesatechnology.com Included in delivery — Measurement report Declaration of conformity
Технические характеристики

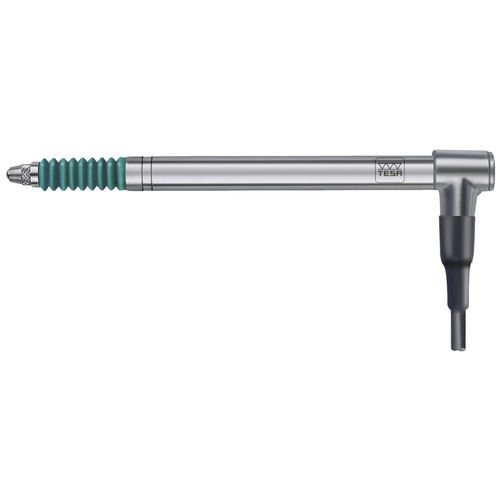

CharacteristicsTypemeasurementTechnologyspring, inductive, electronicMeasuring range
2 mm (0.0787 in)
