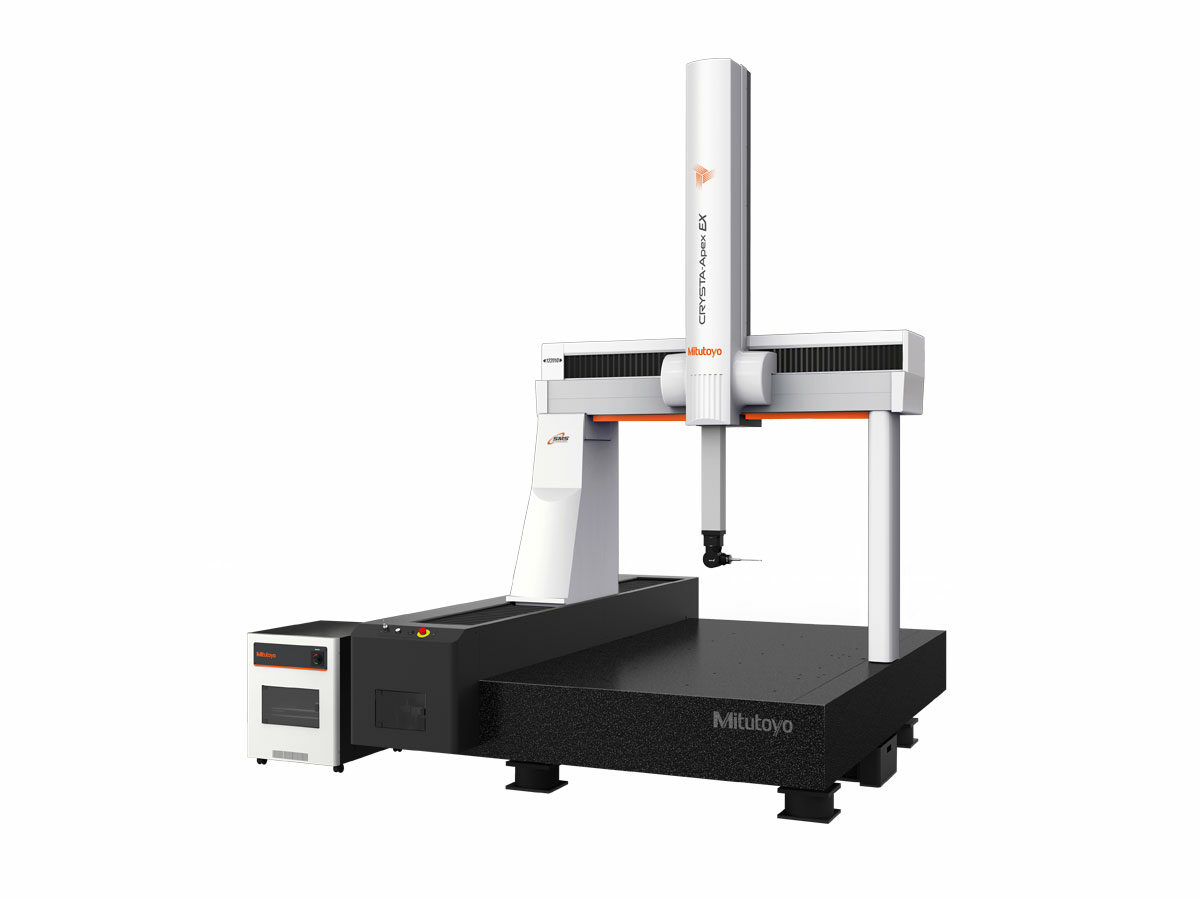

The 5-axis operation on the REVO-equipped Mitutoyo Crysta-Apex EX 1200 R CNC CMM reduces the time required for probe repositioning movements for faster measurements. This also facilitates access to complex workpieces, saving time during programming and measuring. The ultra-high speed 5-axis scanning greatly surpasses conventional 3-axis control, supporting high-speed sampling of up to 4,000 points per second. The internal implantation of laser sensing technology ensures high-accuracy measurement even with long styli.
- REVO 5-axis scanning probe head delivers ultra-high speed 5-axis scanning
- Reduces time required for probe repositioning movements and allows for flexible positioning
- 3D CAD modeling offers productive on-line or off-line programming
- Automatic probe changes with an optional module changer is supported
- Supports RSP2 for 5-axis scanning probe and SP25M type RSP3 probe for use of a cranked stylus
- Temperature compensation guarantees accuracy within the range of 16 to 26°C without a temp-controlled room
Технические характеристики
| Technology: | Coordinate Measuring Machine — CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.000004′ (0.0001mm) |
| Guide Method: | Air bearing on each axis |
| Worktable Material: | Granite |
| Worktable Tapped Inserts: | M8 x 1.25mm |
| Environment: | 64.4-71.6°F 18-22°C |
| Vibration Stand: | Optional |
| Probe System: | REVO |
| Touch Trigger Probe: | RSP2, RSP3, RSP3-6 |
| Scanning Probe: | RSP2, RSP3, RSP3-6 |
| Surface Roughness Probe: | SFP2 |
| Laser Probe: | SurfaceMeasure |
