Additional Features:
- Continuity of protection conductors with 200mA
- Insulation resistance with 50, 100, 250, 500,1000V DC
- Type A, AC, and B general, selective, and delayed RCDs up to 1000mA
- Test on earth leakage relay RCDs (with RCDX10 optional accessory)
- Line/fault impedance with prospective short circuit current calculation
- High resolution line/fault impedance (with IMP57 optional accessory)
- Curve B, C, D, and K MCBs and type gG and aM fuses
- Selection of length, type, and insulation of the cable under test
- Selection of tripping time of the protection device under test
- Earth resistance and soil resistivity with auxiliary rods
- Earth ground resistance (with T2100 optional accessory)
- Non-trip earth loop impedance
- Phase sequence indication
- Voltage drop on main power lines
- Power Analysis, Harmonic analysis up to 25th
- Leakage current by means of the external transducer HT96U (optional)
- Environmental parameters (C/F, HR%, Lux) by means of optional probes
- TFT display with touch-screen
- Help on-line
- Internal memory
- USB interface to connect to the PC
- Built-in WiFi interface to connect to iOS and Android devices
- Rechargeable NiMH batteries (external battery charger)

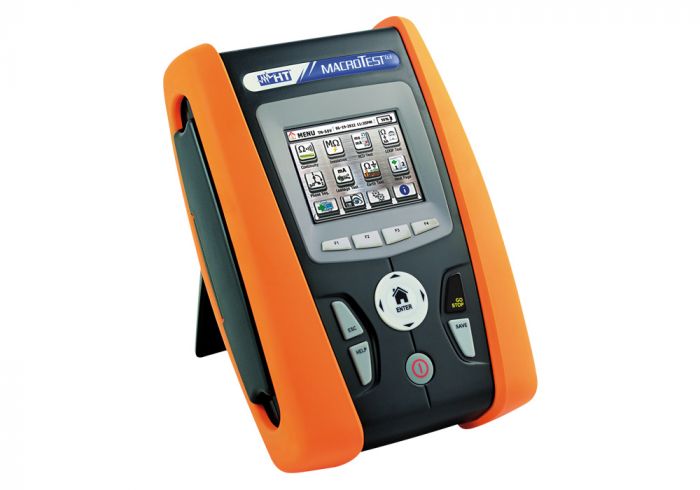

The MACROTEST G3 is an innovative multifunction installation tester capable of carrying out safety tests on civil and industrial electric systems in compliance with IEC/EN61557-1. Its resistive TFT color touch-screen display, its icon menu, its help-on-line and its user-friendly development make the instrument extremely intuitive even for unskilled users. Its numberless features grant the user a wide range of applications in the world of measurements.
The multifunction installation tester MACROTEST G3 allows saving all measures into an internal memory so transferring the saved data to a PC by means of USB (provided as standard) or built in Wi-Fi interfaces with an iOS and Android smartphones or tablets . The software supplied among standard accessories allows printing testing reports.
The multifunction installation tester MACROTESTG3 also drives the optional accessory IMP57 to carry out high resolution (0.1mOhm) loop/line impedance measurements with prospective short-circuit current calculation. This allows accurate measurements even close to power stations enabling the user to correctly size the protection devices in any system.
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
