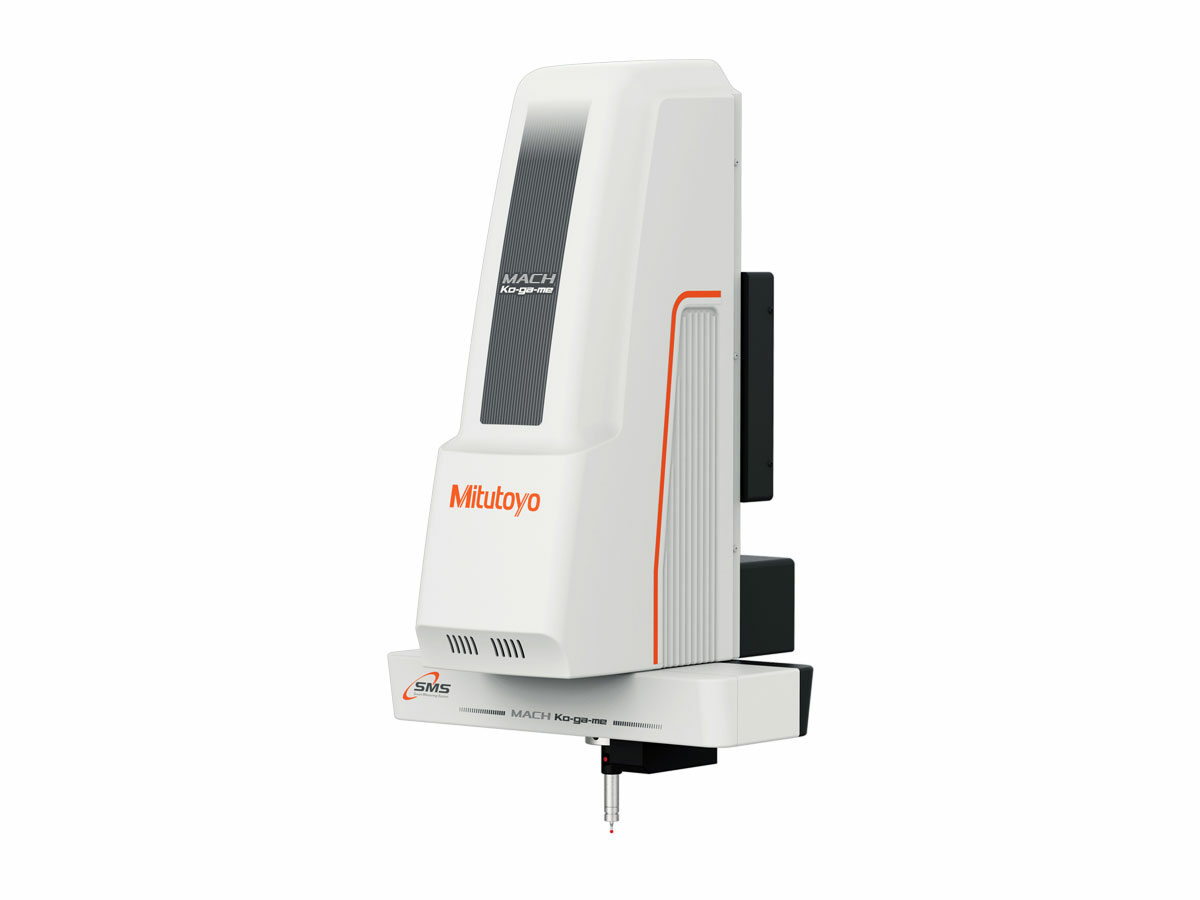

The Mitutoyo MACH Ko-Ga-Me is a fast, compact, lightweight and easy-to-mount Coordinate Measuring Machine, ideal for automated cell measurement solutions. The MACH Ko-Ga-Me can be mounted on any rigid frame, including machine tools, providing full CMM capabilities without the space requirements of a full-size machine. It also offers in-process measurement without requiring setup or breakdown.
- Ideal for small workpiece inspection
- The MACH Ko-Ga-Me accommodates a wide choice of measuring probes including touch-trigger, optical and scanning types
- Load pieces manually or robotically for an automated closed-loop control process
- Quicker measurement feedback and compensation of the manufacturing process reduces scrap and increases throughput
- Temperature compensation guarantees accuracy within 4 different ranges: 19~21°C, 15~25°C, 10~30°C, 10~35°C
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Worktable Size: | Workpiece Max Height: | Workpiece Max Load: | Machine Mass: | Machine Dimensions: | Air Supply: | Air Consumption: | Air Source: |
|---|
| Order No.: |
|---|
| 357-165 | KoGaMe 12128 | 4.72″ (120mm) | 4.72″ (120mm) | 3.14″ (80mm) | Customizable | Customizable | Customizable | 61.7lbs (28kg) | 15.03×14.68×27.73″ (382x373x704mm) | Air not required | Air not required | Air not required |
| 357-165 |
Технические характеристики
| Technology: | Coordinate Measuring Machine — CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.00000079′ (0.00002mm) |
| Guide Method: | Straight-motion hard bearing on each axis |
| Vibration Stand: | Not Applicable |
| Probe System: | PH6, PH6M |
| Touch Trigger Probe: | TP200 |
| Scanning Probe: | SP25 |
| Laser Probe: | Special Order |
| Optical Probe: | Special Order |
| Surface Roughness Probe: | Special Order |
