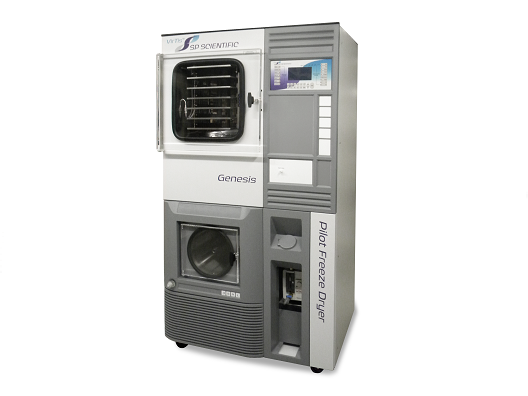

Description
Key Features:
- Compact, freestanding, mobile design.
- Easy scale-up from research to full production.
- Available with a Wizard 2.0 or LyoS™ control system.
- Optional hydraulic stoppering system available.
- Narrow and cleanroom configurations available with
- 8-inch vapor port.
Performance Specifications:
- Lowest Shelf Temperature(50 Hz / 60 Hz): ≤ -57 °C / -60 °C
- Shelf Temperature Control Range*: -40 to 65 °C
- Shelf Pull-Down from 20 °C to -40 °C : ≤ 45 minutes
- Lowest Condenser Temperature(50 Hz / 60 Hz): ≤ -67 °C / -70 °C
- Maximum Condenser Capacity: ≥ 25 L
- Condenser Surface Area: 750 in2 (4838 cm2)
- Condenser Pull-Down from 20 °C to -45 °C: ≤ 25 minutes
- Maximum Ice Condensing Capacity in 24 hours: ≥ 20 L
- Maximum Deposition Rate: ≥ 0.83 L/hour
- Number of Compressors: 1
- Compressor Horsepower: 1.5 hp
- System Refrigerant: R245fa, R508B
- Vacuum Time to 100 Millitorr: ≤ 20 minutes
- Vacuum Rate of Rise: ≤ 30 mT/hour
- Volume-Based Leak Rate: ≤ .0016 mbarꞏL/sec
- Lowest System Vacuum: ≤ 15 mT
- Temperature Uniformity: ± 1.0 °C
Utility Requirements:
- Compressed Air (for units with isolation valve): 80 psig (6.5bar)
- Ambient Room Temperature: 15-25 °C (59-77 °F)
- Approx. Peak Room Heat Generated (Air-Cooled Units): 8,900 BTU/h
- Approx. Peak Room Heat Generated (Water-Cooled Units): 4,000 BTU/h
- Cooling Water Usage**: 1-3 gpm (4-12 Lpm)
Electrical Requirements:
- Voltage: 208 – 230 VAC
- Hertz: 60 Hz
- Phase: 1 Φ
- Breaker Amperage: 30 A
- Recommended Outlet: NEMA L6-30R
Dimensional Data – Cleanroom Configuration:
- Width: 25 in (64 cm)
- Depth: 75 in (191 cm)
- Height: 73.5 in (187 cm)
- Max. Weight: 850 lb (386 kg)
- Min. Clearance on All Sides: 10 in (25 cm)
