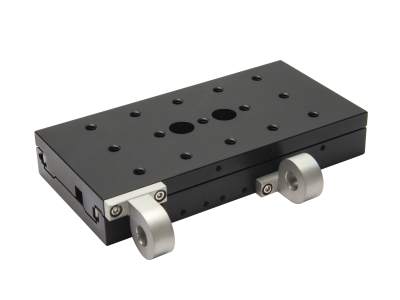

Model M443-4 is a low-profile, precision ball bearing linear stage with a maximum travel range of 101.6 mm It features exceptional performance, usability and value with a 258 N centered load capacity and M6 mounting holes. Hardened balls rolling between opposing pairs of hardened and polished stainless steel rods allow for stability, repeatability, and exceptionally smooth motion. Two actuators (sold separately) bear against each other, tip-to-tip, to enable up to 101.6 mm of travel. Springs provide preload against the actuator tips to eliminate backlash.
Технические характеристики
- Axes of Travel X
- Maximum Stage Travel 102 mm
- Centered Normal Load Capacity 258 N
- Vertical Axial Load Capacity 67 N
- Angular Deviation
- Material Aluminum
- Bearings Single-Row Ball Bearings
- Drive Location Side drive
- Platform Size 76.2 x 152.4 mm
- Thread Type M6
- Recommended Adjustment Screw AJS100-2 x2
- Recommended Vernier Micrometer SM-50 x2
- Recommended LTA Motorized Actuator LTA-HS x2
