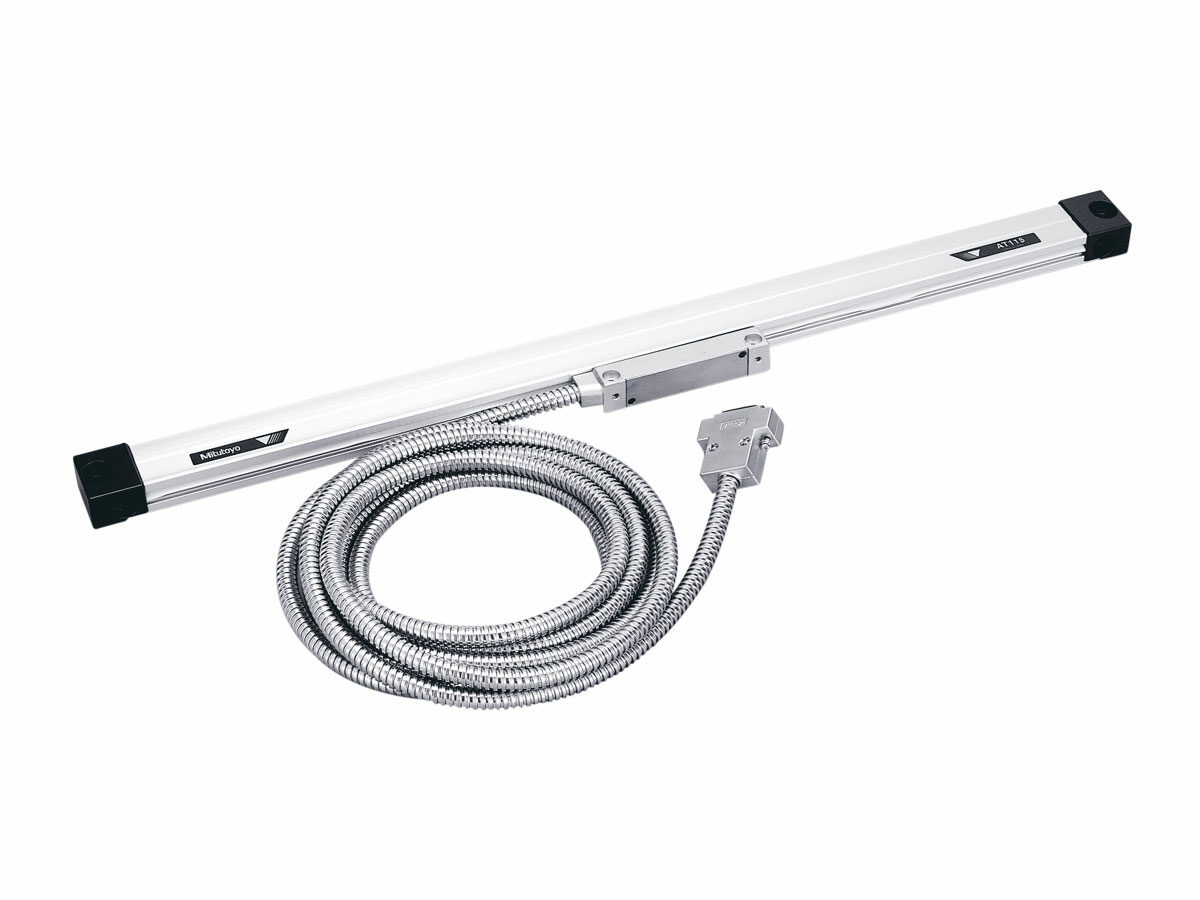

The LED light source and phototransistor receptor on the AT116 linear scale provides accurate results in a variety of applications. Its slim design allows for installation in smaller spaces, and enhanced vibration resistance offers added durability for shop floor use.
- Dimensionally compatible with AT113 linear scale units
- Innovative rubber lips keep contaminants out of unit for some dust protection
- An armored signal cable is used to connect the scale unit to the DRO counter for safe operation in harsh shop environments
- The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
- A wide variety of measuring ranges are available in this standard type scale unit
- Connectable to the KA counter or PSU-200
- IP53 rated for protection from dust and spraying water
| Order No.: | Product Image: | Model: | Max Range: | Signal Cable Length: | |
|---|
| 539-271-30R | — | AT116-100 | 100mm / 4″ | 3.4m |
| 539-272-30R | — | AT115-150 | 150mm / 6″ | 3.4m |
| 539-273-30R | — | AT116-200 | 200mm / 8″ | 3.4m |
| 539-274-30R | — | AT116-250 | 250mm / 10″ | 3.4m |
| 539-275-30R | — | AT116-300 | 300mm / 12″ | 3.4m |
| 539-276-30R | — | AT116-350 | 350mm / 14″ | 3.4m |
| 539-277-30R | — | AT116-400 | 400mm / 16″ | 3.4m |
| 539-278-30R | — | AT116-450 | 450mm / 18″ | 3.4m |
| 539-279-30R | — | AT116-500 | 500mm / 20″ | 3.4m |
| 539-281-30R | — | AT116-600 | 600mm / 24″ | 3.4m |
| 539-283-30R | — | AT116-700 | 700mm / 28″ | 3.4m |
| 539-284-30R | — | AT116-750 | 750mm / 30″ | 3.4m |
| 539-285-30R | — | AT116-800 | 800mm / 32″ | 3.4m |
| 539-286-30R | — | AT116-900 | 900mm / 36″ | 3.4m |
| 539-287-30R | — | AT116-1000 | 1000mm / 40″ | 4.9m |
| 539-288-30R | — | AT116-1100 | 1100mm / 44″ | 4.9m |
| 539-289-30R | — | AT116-1200 | 1200mm / 48″ | 4.9m |
| 539-290-30R | — | AT116-1300 | 1300mm / 52″ | 4.9m |
| 539-291-30R | — | AT116-1400 | 1400mm / 56″ | 4.9m |
| 539-292-30R | — | AT116-1500 | 1500mm / 60″ | 4.9m |
| 539-271-30R |
| 539-272-30R |
| 539-273-30R |
| 539-274-30R |
| 539-275-30R |
| 539-276-30R |
| 539-277-30R |
| 539-278-30R |
| 539-279-30R |
| 539-281-30R |
| 539-283-30R |
| 539-284-30R |
| 539-285-30R |
| 539-286-30R |
| 539-287-30R |
| 539-288-30R |
| 539-289-30R |
| 539-290-30R |
| 539-291-30R |
| 539-292-30R |
Технические характеристики
| Type: | Ecomony and Slim Spar Type |
|---|
| Resolution: | 0.01 to 0.0001mm / .001 to .000005′ |
|---|
| Accuracy: | 5+5L/1000 (‘L’ is the effective range of the selected scale in mm)µm |
|---|
| Output Signal: | Two 90 degree phase-shifted sinusoidal signals |
|---|
| Maximum Response Speed: | 50m/min |
|---|
| Signal Output Pitch: | 20µm |
|---|
| Scale Reference Point: | Output in 50mm pitch |
|---|
| Protection Level: | IP53 |
|---|
| Operating Temperature Range: | 0 to 45˚C |
|---|
| Connectable counter: | KA Counter, KLD200 Counter, PSU-200 |
|---|
| Optional Accessories: | 09AAB674A, 09AAB674B, 09AAB674C, 174-183A, 174-185A |
|---|
