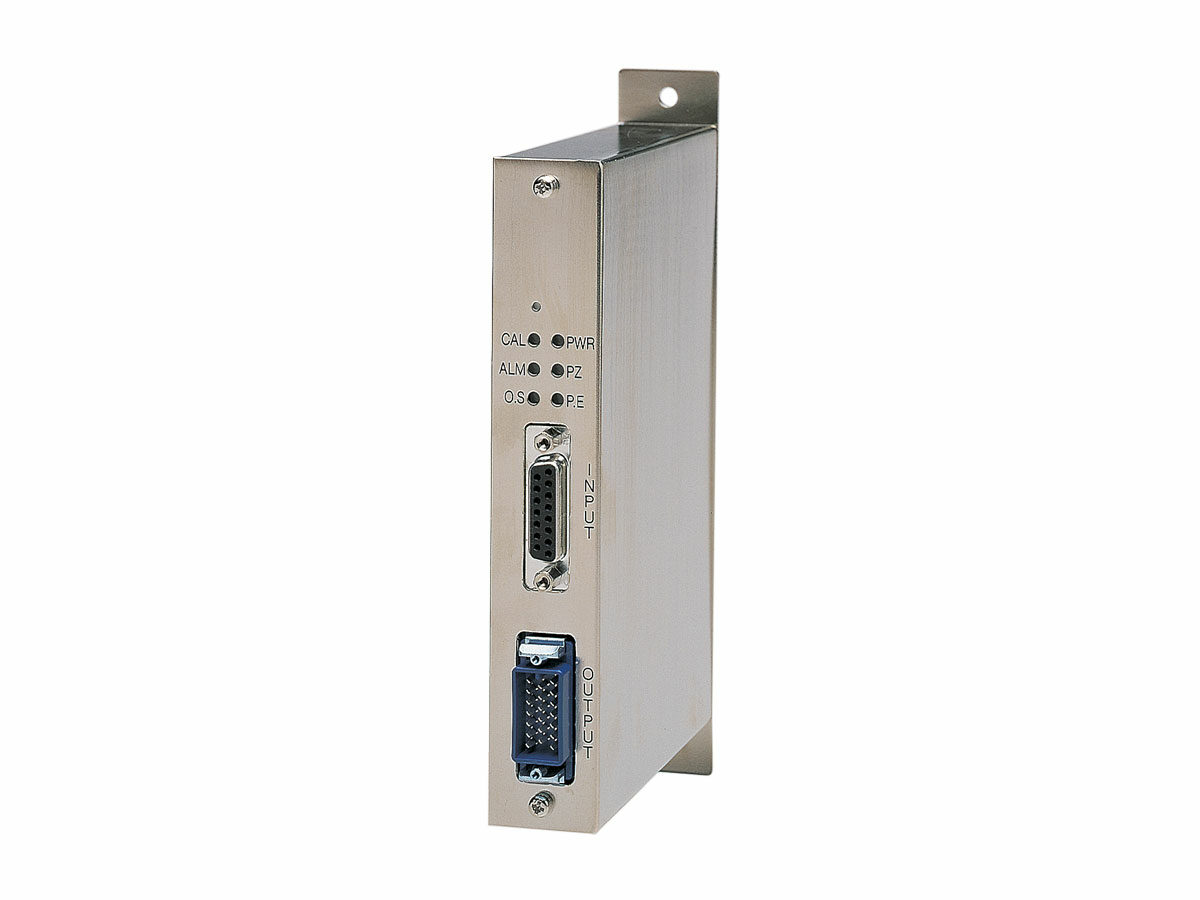

The PSU-200 splits the sinusoidal signal output with Mitutoyo linear scales into a minimum of four and a maximum of 200 divisions. The signal is converted to a square-wave signal so that NC feedback systems, measurement control devices, etc., can be used with linear scales in order to achieve highly accurate positioning.
- Works with Linear Scales with the sinusoidal signal output
- Quadrature signal output conforms to EIA standard RS422-A
- Alarm function for detecting broken wires or short circuits in the detector, over-speed and fluctuation errors in the input signal from the detector
| Order No.: | Product Image: | Model: | Number of Axes Displayed: | Number of Splits: | Power Supply: | Current Consumption: | Storage Temperature Range: | Operating Temperature Range: | Dimensions: | Mass: | |
|---|
| 539-005 | — | PSU-200 | 1 | 4, 8, 10, 20, 40, 80, 100, 200 (Selectable with the switch) | 5VDC ± 5% | 200mA | –20°C to 70°C˚C | 0°C to 40°C˚C | 160(W)×100(D)×28(H)mm | 1.4 lbs / 620g |
