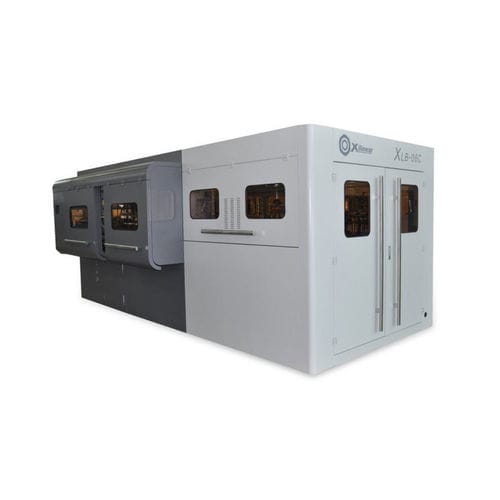

Standard Linear Machine Standard series is designed independently by Xili company, and combined with market and customer needs to research and develop small and medium linear blow molding machine. Standard series is designed independently by Xili company, and combined with market and customer needs to research and develop small and medium linear blow molding machine. This machine combined with the main blowing unit, heating oven, auto preform feeder and servo motor control system, suitable for blowing various bottle-shaped, with the characteristics of simple operation, low failure rate, high stability, and high cost effective. The main structure and principle of the machine: A,clamping part by positioning rack balance position, after the former three templates, hyperbolic arm linkage, clamping cylinder, driven by electromagnetic direction valve drive cylinder connecting rod crank arm to realize the process.The reasonable structure design, the work is smooth operation, clamping force. B, stretch blow by stretching the electromagnetic valve, high pressure valve, body sealing cylinder, the sealing seat, blowing gas reservoir.Work through the direction control valve drive stretching cylinder piston, drive the tensile rod and seal cylinder upward on the top of the bottle preform mould clamping, sealing cylinder seal bottle mouth, stretching rod to the already heated elastic shaped bottle preform longitudinal extension, and stored in the gas reservoir of the gas by high-pressure blow after sealing the cylinder for bottom blowing bottle preform, high-pressure blow molding
Технические характеристики
CharacteristicsTypestretchFinished productfor bottlesOther characteristicslinearHollow part volume
Max.: 2.5 l (0.7 gal)
Min.: 0.8 l (0.2 gal)
