The Mitutoyo LEGEX series CMMs incorporates an ultra-high accuracy scale unit with crystallized glass scales (thermal expansion coefficient of 0.01×10-6/K) and a high-resolution, high-performance reflection linear encoder providing premium positioning performance. The fixed-bridge design allows the X- and Y-axis to operate independently of each other while eliminating pitch and yaw errors. The LEGEX»s “center of gravity” drive system allows for very high speed while taking ultra-accurate measurements.
- Air-damped spring isolators with an auto-leveling function eliminates factory floor vibrations from the machine
- Rigid, durable construction with fixed-bridge design eliminates measurement fluctuations due to axis movement
- FEM structure analysis simulation, guarantees geometric motion accuracy has minimal errors from fluctuations in the load and other variables
| Order No.: | Product Image: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Worktable Size: | Workpiece Max Height: | Workpiece Max Load: | Machine Mass: | Machine Dimensions: |
|---|
| Order No.: |
|---|
| 356-407 |  | LEGEX 574 | 19.68″ (500mm) | 27.55″ (700mm) | 15.74″ (400mm) | 21.65 x 29.52″ (550 x 750mm) | 27.55″ (700mm) | 551lbs (250kg) | 551lbs (250kg) | 57.87×95.66×103.54″ (1470x2430x2630mm) |
| 356-417 |  | LEGEX 774 | 27.55″ (700mm) | 27.55″ (700mm) | 15.74″ (400mm) | 29.52 x 29.52″ (750 x 750mm) | 27.55″ (700mm) | 1,102lbs (500kg) | 1,102lbs (500kg) | 65.74×95.66×103.54″ (1670x2430x2630mm) |

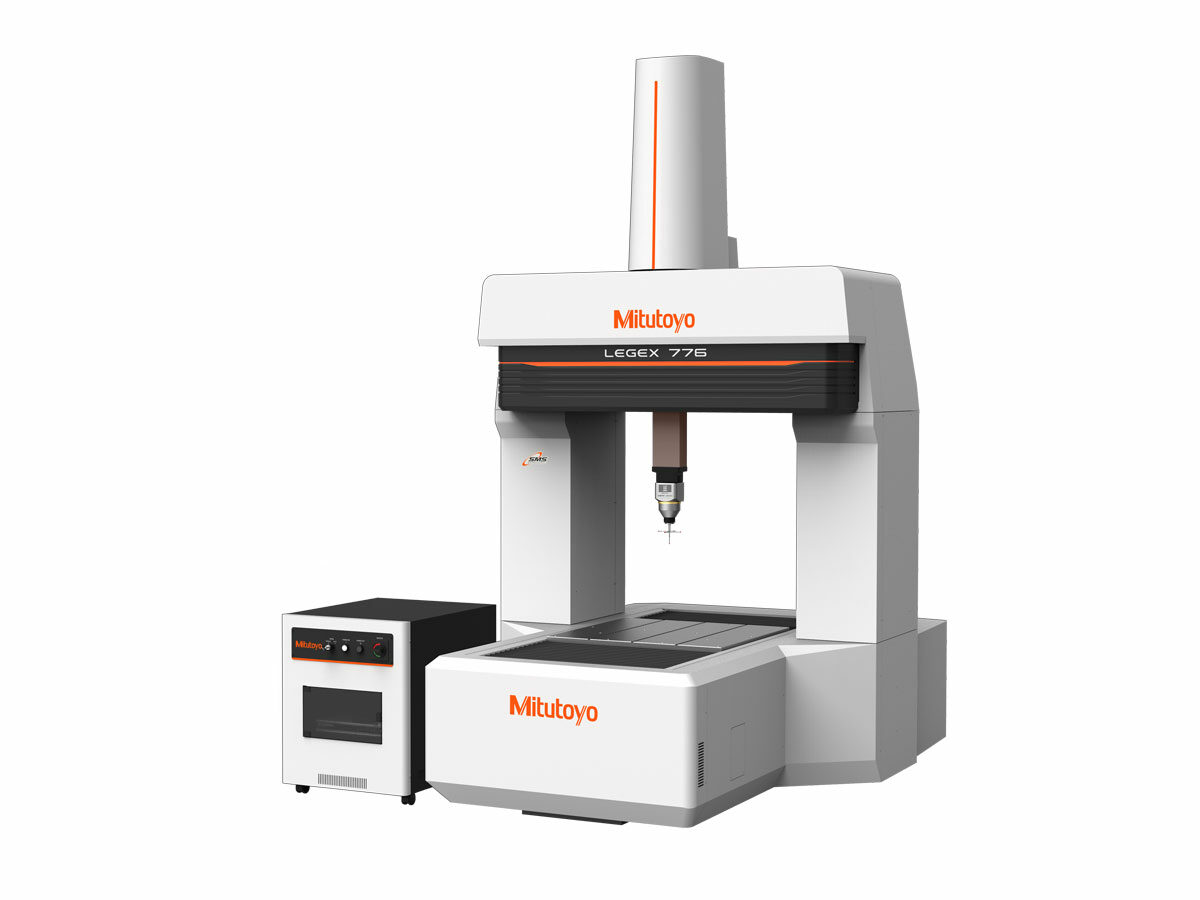

| 356-427 |  | LEGEX 776 | 27.55″ (700mm) | 27.55″ (700mm) | 23.62″ (600mm) | 29.52 x 29.52″ (750 x 750mm) | 33.46″ (850mm) | 1,102lbs (500kg) | 1,102lbs (500kg) | 65.74×95.66×115.35″ (1670x2430x2930mm) |
| 356-437 |  | LEGEX9106 | 35.43″ (900mm) | 35.43″ (1000mm) | 23.62″ (600mm) | 37.40 x 41.33″ (950 x 1050mm) | 33.46″ (850mm) | 1,763lbs (800kg) | 1,763lbs (850kg) | 73.62×119.29×120.07″ (1870x3030x3050mm) |
| 356-407 |
| 356-417 |
| 356-427 |
| 356-437 |
Технические характеристики
| Technology: | Coordinate Measuring Machine — CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.0000004′ (0.00001mm) |
| Guide Method: | Air bearing on each axis |
| Vibration Stand: | Standard |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP7 |
| Scanning Probe: | MPP, SP25 |
| Laser Probe: | SurfaceMeasure |
| Optical Probe: | QVP |
| Surface Roughness Probe: | SurfTest |
