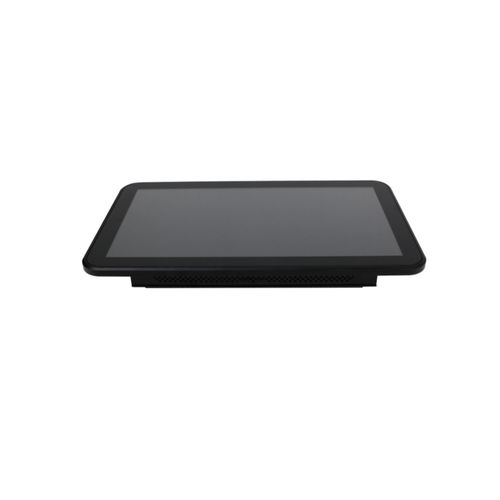

15.6 ”INTEL J1900 Industrial Touch Panel PC 1.99GHZ with Bay Trail J1900 processor. 15.6 ”capacitive technology touch monitor and computer ruggedized fanless in black aluminum chassis, with passive cooling system without the use of fans. It has dual HDMI and VGA video output for connecting 1 external monitor that with its own screen enables its operation with 2 screens at a time. 4 USB ports (1 x 3.0 and 3 x 2.0). Mounting system VESA or panelable with the use of supplied brackets. Anchor Type: Panelable yes, VESA yes, RACK no. Processor Frequency: Minimum 1.99Ghz, maximum 2.42Ghz. Graphics : Integrated Intel HDZ3700 Series LVDS, Dual HDMI / VGA output RAM: 0 Gb on Board + 1 SODIMM / 1.35v Socket (4 / 8Gb) ROM: SATA SSD / MSATA SSD (120, 240Gb) / SATA HDD (500Gb, 1Tb) * Consult other capacities. Audio: Realtek HD ALC662 Line-out and MIC LAN: Realtek RTL8111F or Intel I210 / I211 AT 10/100 / 1000Mbps. Wake on Lan. IP protection Screen : front IP65. Jet water must not enter (from any angle) by means of a 6.3 mm diameter nozzle, provided that the panel mounting is correct. Industrial PC IP protection: IP50. The ingress of dust cannot be avoided, but it must not enter in an amount such that it interferes with the proper functioning of the equipment. Wireless: Mini PCI Express Intel 7260BN. WiFi 802.11 b / g / n (OPTIONAL) GPS: Mini PCI Express u-Blox pci-5s-1 — 500. (OPTIONAL) 3G / GPS: Mini PCI Express Huawei EM770w. (OPTIONAL) 4G / GPS: Mini PCI Express Huawei ME909u-521. (OPTIONAL) Dimensions: 397 x 246 x 44 mm (LxWxH) Weight: 3’25 Kg Packing: Individual Box, PC, Power supply, Power cord, Drivers.
Технические характеристики
CharacteristicsScreen typeLCD, with touch screenDisplay size15.6Resolution1366 x 768ProcessorIntel® Celeron J1900ApplicationsindustrialOther characteristicsfanless, wireless, IP65, rugged
