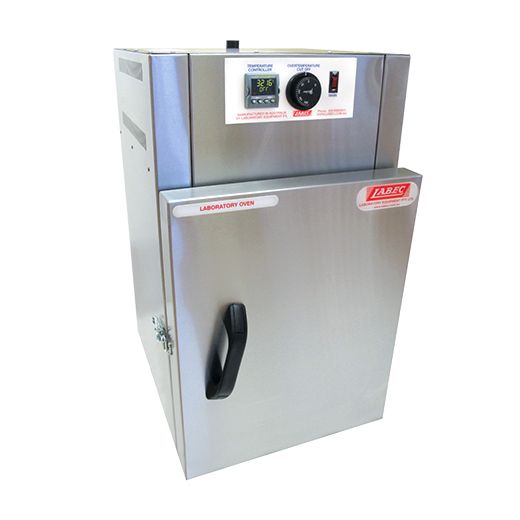

General Purpose Fan Forced Oven (up to +200ºC/300ºC) is manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability. Available in two temperature ranges and various model sizes (see specifications). Suitable for applications where general warming drying or heating is required. Using fan forced convection heating which circulates the warm air inside the chamber thus providing improved uniformity and fast recovery after the door is opened.
Controller
A digital microprocessor based PID temperature controller controls the temperature within the range ambient +5C to 200C/300C, temperature fluctuation at 105C is ±1C.
Data logging
When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Additional options
To suit requirements the addition of options such as a safety toughened glass viewing window, programmable controllers, timers and cable access ports are also available.
Standard features include:
- RCD/ ELB (earth leakage breaker)
- Over Temperature Thermostat
- Stainless Steel exterior
- Type K Thermocouple
- Adjustable/removable shelving
Cat. No.
EODWF10
EODWF14
EODWF18
EODWF24
EODWF36
EODWF50
Capacity
16L
32L
66L
160L
300L
507L
Int. Dim. (H x W x D)
25 x 25 x 25cm
35 x 30 x 30cm
46 x 38 x 38cm
60 x 50 x 50cm
90 x 60 x 50cm
120 x 65 x 65cm
Ext. Dim. (H x W x D)
63 x 38 x 47cm
73 x 42 x 50cm
80 x 49 x 58cm
97 x 63 x 72cm
128 x 74 x 72cm
161 x 76 x 83cm
Temp. Controller
Digital PID Controller, type K sensor
Temperature Range
Ambient +5C to +200C
Temp. Setting Accuracy
±0.1C
Temp. Fluctuation
+/ 0.2C
Heating System
Electric Element
Material
Interior and external — Stainless Steel
Shelves
2
3
Options
Glass viewing window, castors, cable entry port, additional shelves, timer, programmable temperature profiler, fan — soil drying option
Safety Features
Over temperature alarm temperature protection cut off, Earth leakage breaker (ELB)
Power Supply
240V/50Hz
Power
1800W
1800W
1800W
1800W
1800W
2400W
Weight
20kg
25kg
35kg
45kg
55kg
80kg
Cat. No.
EODWFH14
EODWFH18
EODWFH24
EODWFH36
Capacity
32L
66L
160L
300L
Int. Dim. (H x W x D)
35 x 30 x 30cm
46 x 38 x 38cm
60 x 50 x 50cm
90 x 60 x 50cm
Ext. Dim. (H x W x D)
80 x 52 x 58cm
90 x 57 x 68cm
105 x 72 x 79cm
140 x 82 x 80cm
Temperature Range
Ambient+5C to +300C
Temp. Setting Accuracy
±0.1C
Temp. Fluctuation
at 105C ±1C
Temp. Sensor
Type K
Heating System
Electric Element
Interior Material
Stainless Steel
Exterior Material
Stainless Steel
Shelves
2
Options
Glass or acrylic viewing window, castors, cable entry port, timer, programmable temperature profiler, additional shelves
Safety Features
Over temperature alarm, temperature protection cut off, earth leakage breaker.
Power Supply
240V/50Hz
Power
2400W
3600W
4800W
Weight
28kg
38kg
48kg
94kg
