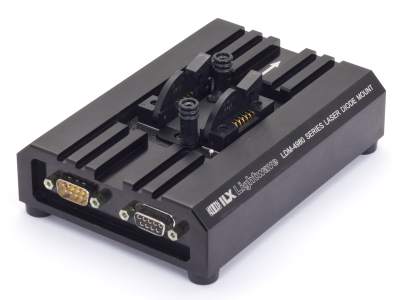

The LDM-4984 is designed for typical 14-pin telecommunication butterfly laser diode packages. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting. The LDM4984 features the ILX Lightwave standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.
Технические характеристики
- Package Type 14-pin Butterfly
- Laser Current 2 A
- TE Cooler No
- Temperature Sensor None
- Laser Driver Connector Type Female 9-pin DSUB
- TEC Controller Connector Type Male 9-pin DSUB
- Dimensions 31.8 x 102 x 140 mm
