Product Information

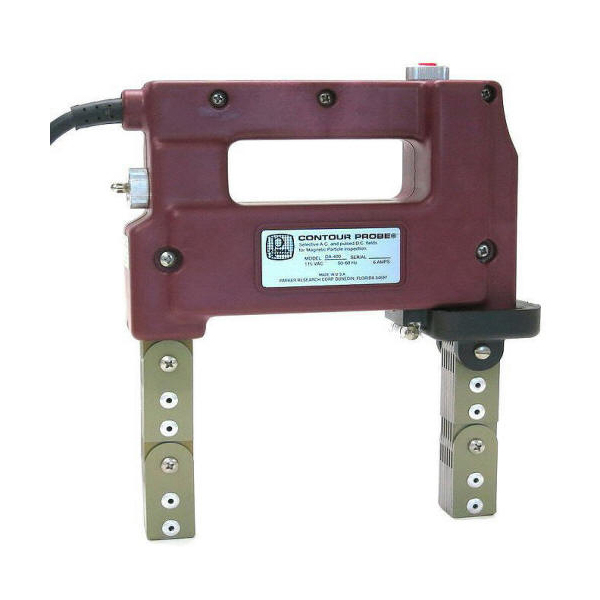

Controls and solid-state electronics are contained within the high impact molded housing. Articulating legs allow the AC or DC field to be applied to the precise area of inspection on nearly any part of the surface shape… in the lab, factory or field site.
All Parker Contour Probes comply with the requirements of applicable specifications. Certified for European CE requirements.
- VERSATILITY AND POWERFUL PERFORMANCE IN A LIGHTWEIGHT (8.5 LBS.) INSTRUMENT
- CONSTANT AC OR HALF WAVE RECTIFIED (DC) FIELDS WITH THE FLIP OF A SWITCH FOR THE LOCATION OF SURFACE AND SOME SUB-SURFACE DEFECTS
- APPLY CONTINUOUS FIELDS AND DEMAGNETIZE TOO
- USE WITH DRY POWDER, WET FLUORESCENT OR VISIBLE
- HIGH IMPACT MOLDED HOUSING
- ONE YEAR REPAIR/REPLACEMENT GUARANTEE
- OPTIONAL Y-400 YOKE LIGHT WHERE SHOWN IS AVAILABLE AT ADDITIONAL COST.
SPECIFICATIONS
DA-400
DA-400S
A-410
A-410S
Physical
10 H × 8 L × 2.25 W
Line Voltage Single Phase 115 VAC
50/60 Hz 230 VAC
50/60 Hz 115 VAC
50/60 Hz 230 VAC
50/60 Hz Line Current 6 A
AC/DC 3 A
AC/DC 6 A
AC 3 A
AC Duty Cycle
2 minutes on – 2 minutes off
Weight 8.5 lbs (3.8 kg) Construction
Glass-filled nylon housing
10 foot (3 m) 3-wire power cord
Span
12 in. (305 mm) across poles
Field AC/DC AC/DC AC AC
