Product Information

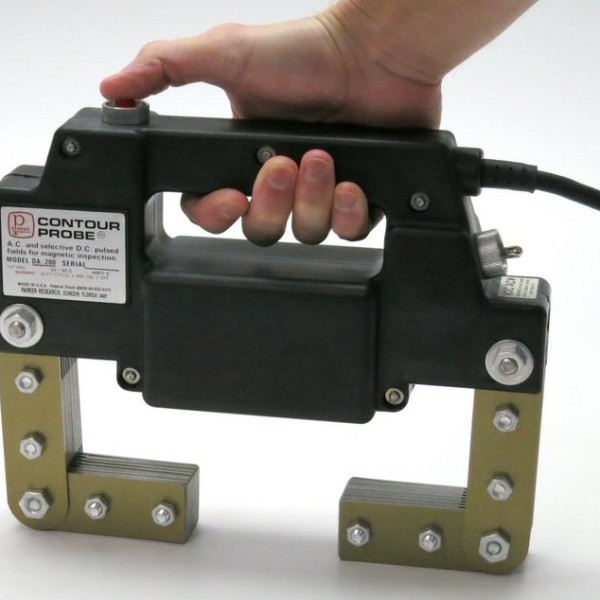

The DA-200 Contour Probe is a portable, self-contained instrument designed to produce a magnetic field on or within ferrous-magnetic materials. The selective AC and DC functions are built into a single reliable instrument.
The AC mode produces an intense AC field for detection of surface defects and demagnetizing after inspection. The DC mode produces an intense Half Wave Rectified DC field for detection of some sub-surface defects. Combined with the flexibility of articulating legs and a rugged molded housing, the Contour Probe can be used on nearly any part or surface contour… in the lab, factory, or field site.
- VERSATILITY AND POWERFUL PERFORMANCE IN A RUGGED, RELIABLE INSTRUMENT
- CONSTANT AC OR HALF WAVE RECTIFIED (DC) FIELDS WITH THE FLIP OF A SWITCH, FOR THE LOCATION OF SURFACE AND SOME SUB-SURFACE DEFECTS
- APPLY CONTINUOUS MAGNETIC FIELDS AND DEMAGNETIZE TOO
- USE WITH DRY POWDER, WET FLUORESCENT OR VISIBLE
- HIGH IMPACT-MOLDED HOUSING
- ONE-YEAR REPAIR/REPLACEMENT GUARANTEE
SPECIFICATIONS
DA-200
DA-200S
A-210
A-210S
Physical
11 H × 10.75 L × 2.75 W
Line Voltage Single Phase 115 VAC
50/60 Hz 230 VAC
50/60 Hz 115 VAC
50/60 Hz 230 VAC
50/60 Hz Line Current 6 A
AC/DC 4 A
AC/DC 9.5 A
AC 4 A
AC Duty Cycle
2 minutes on – 2 minutes off
Weight 12 lbs (5.44 kg) Construction
Glass-filled nylon housing
10 foot (3 m) 3-wire power cord
Span
18 in. (457 mm) across poles
Field AC/DC AC/DC AC AC
